Question: Question 1 : The shaft shown below is supported by bearings at A and D and is loaded by a constant load of F .

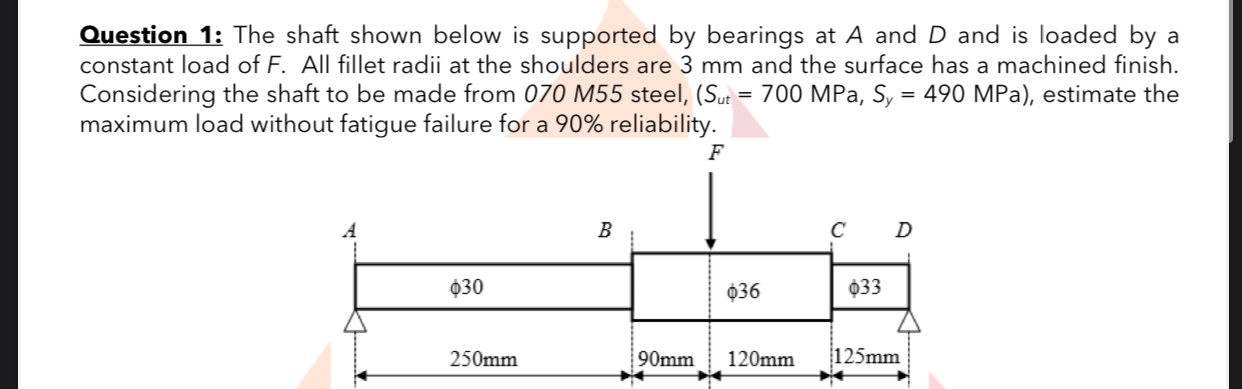

Question 1: The shaft shown below is supported by bearings at A and D and is loaded by a constant load of F. All fillet radii at the shoulders are 3 mm and the surface has a machined finish. Considering the shaft to be made from 070 M 55 steel, (Sut=700MPa,Sy=490MPa ), estimate the maximum load without fatigue failure for a 90% reliability.
Question 1 : The shaft shown below is supported

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
