Question: Question 16 1 pts Consider the circuit shown below. What is the energy (in ]) stored in capacitor 2 after the switch has been closed

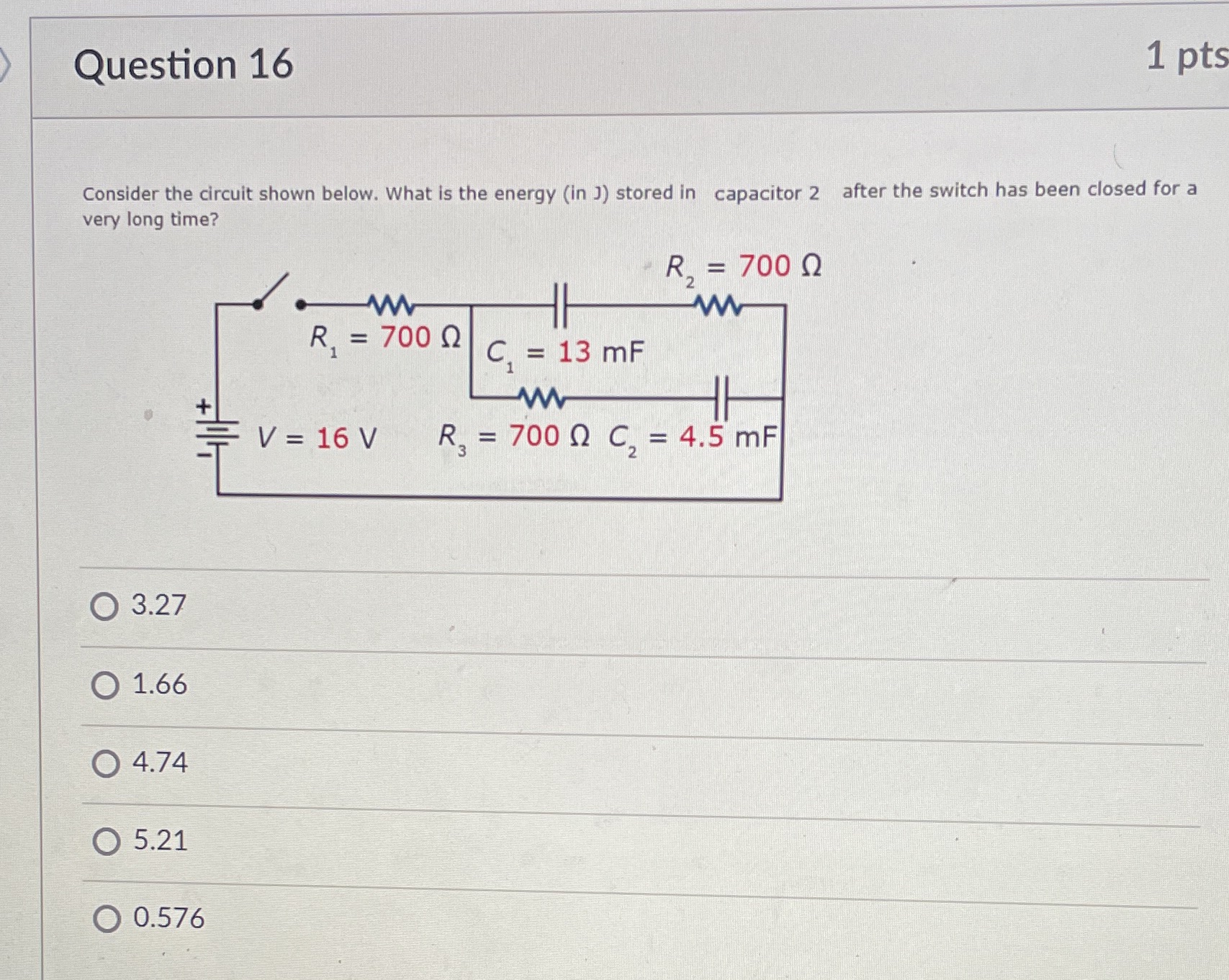

Question 16 1 pts Consider the circuit shown below. What is the energy (in ]) stored in capacitor 2 after the switch has been closed for a very long time? R. = 700 0 R, = 700 0 C, = 13 mF V = 16 V R, = 700 0 C, = 4.5 mF O 3.27 O 1.66 O 4.74 O 5.21 O 0.576

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
