Question: Question 2 ( 1 point ) Use the method of sections to determine the force ( in k N ) in member D F of

Question 2(1 point)

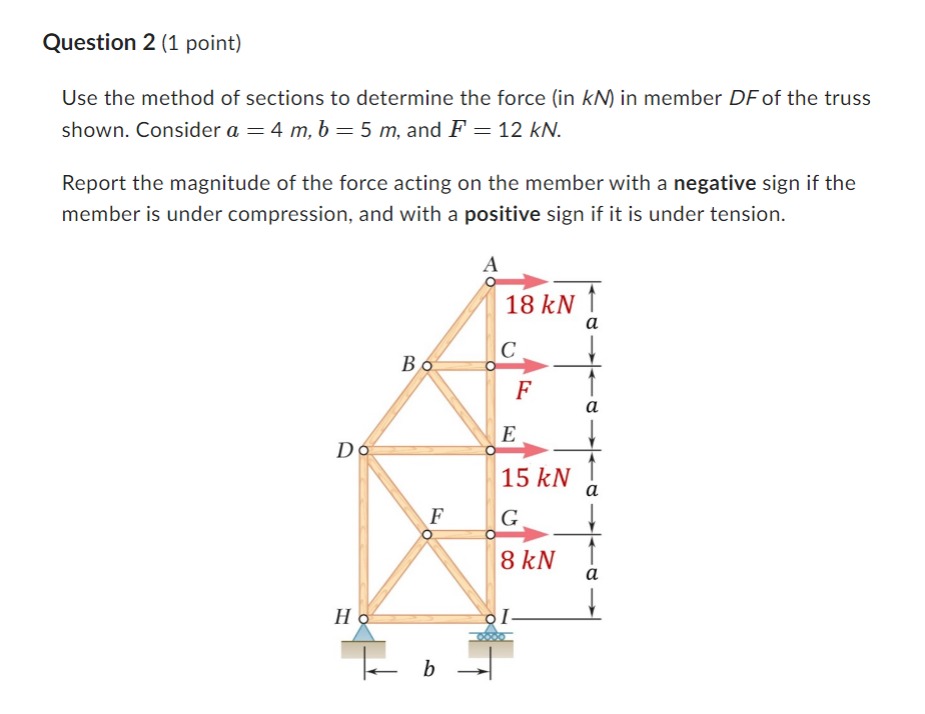

Use the method of sections to determine the force (in kN) in member DF of the truss
shown. Consider a=4m,b=5m, and F=12kN.
Report the magnitude of the force acting on the member with a negative sign if the
member is under compression, and with a positive sign if it is under tension.
Question 2 ( 1 point ) Use the method of sections

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
