Question: QUESTION 2 1 Points An open manometer shown in Figure is installed to measure pressure in a pipe carrying an oil with specific gravity S

QUESTION 2
1 Points

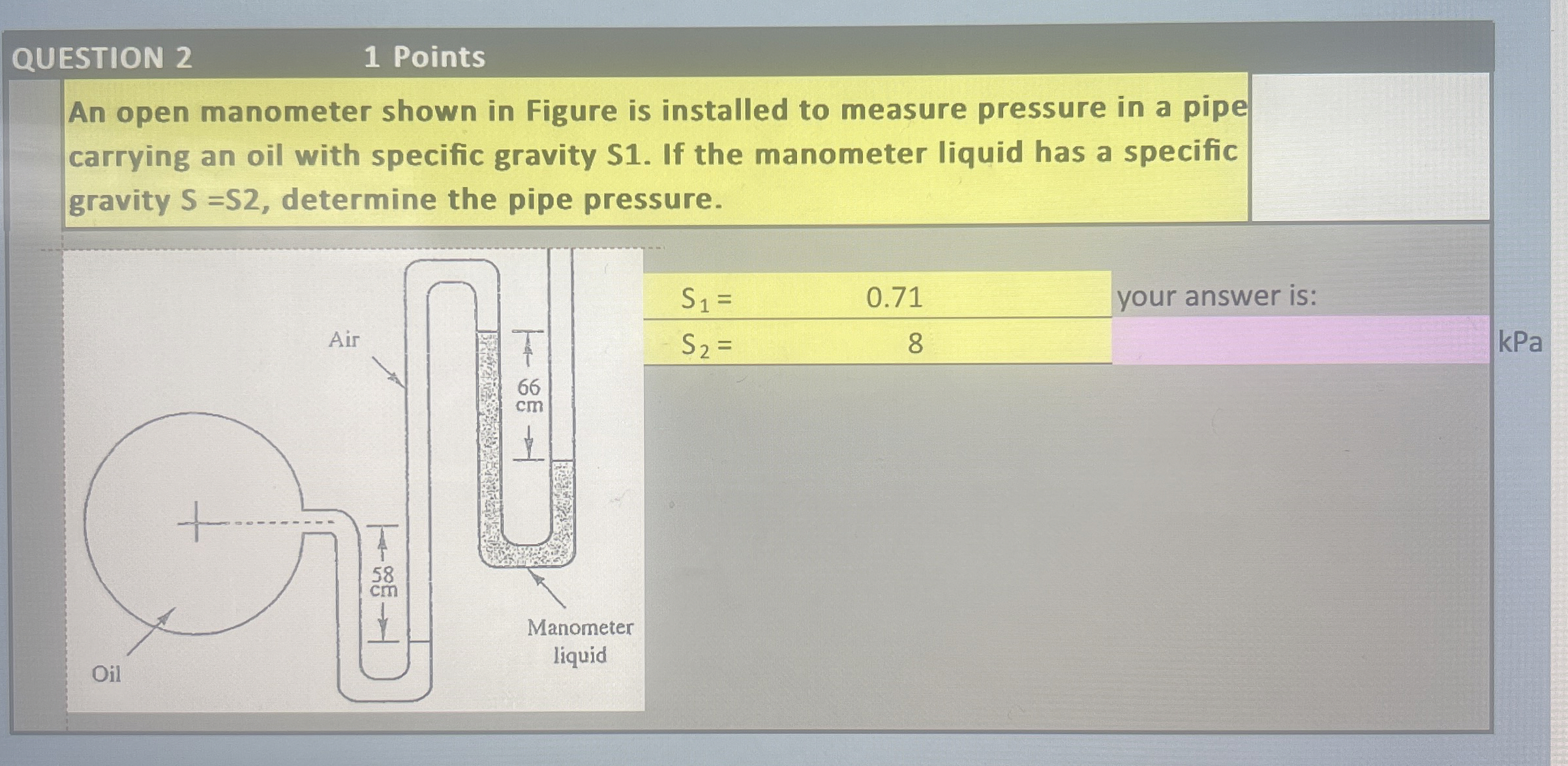

An open manometer shown in Figure is installed to measure pressure in a pipe carrying an oil with specific gravity S1. If the manometer liquid has a specific gravity S =S2, determine the pipe pressure.
QUESTION 2 1 Points An open manometer shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
