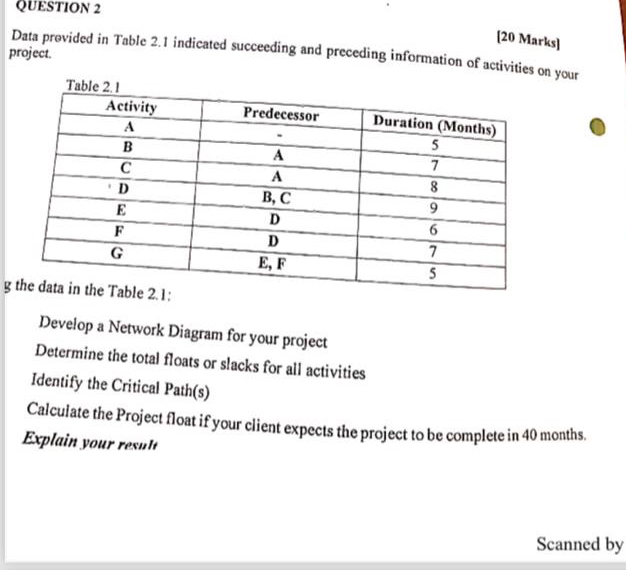

QUESTION $2$

$[20$ Marks$]$

Data provided in Table $2\mathrm{.}1$ indicated succeeding and preceding information of activities on your project.

Table $2\mathrm{.}1$

$\backslash$table$[[$Activity$,$Predecessor,Duration $($Months$)],[$A$,-,5],[$B$,$A$,7],[$C$,$A$,8],[$D$,$B$,$ C$,9],[$E$,$D$,6],[$F$,$D$,7],[$G$,$E$,$ F$,5]]$

$g$ the data in the Table $2\mathrm{.}1$:

Develop a Network Diagram for your project

Determine the total floats or slacks for all activities

Identify the Critical Path$($s$)$

Calculate the Project float if your client expects the project to be complete in $40$ months.

Explain your result
