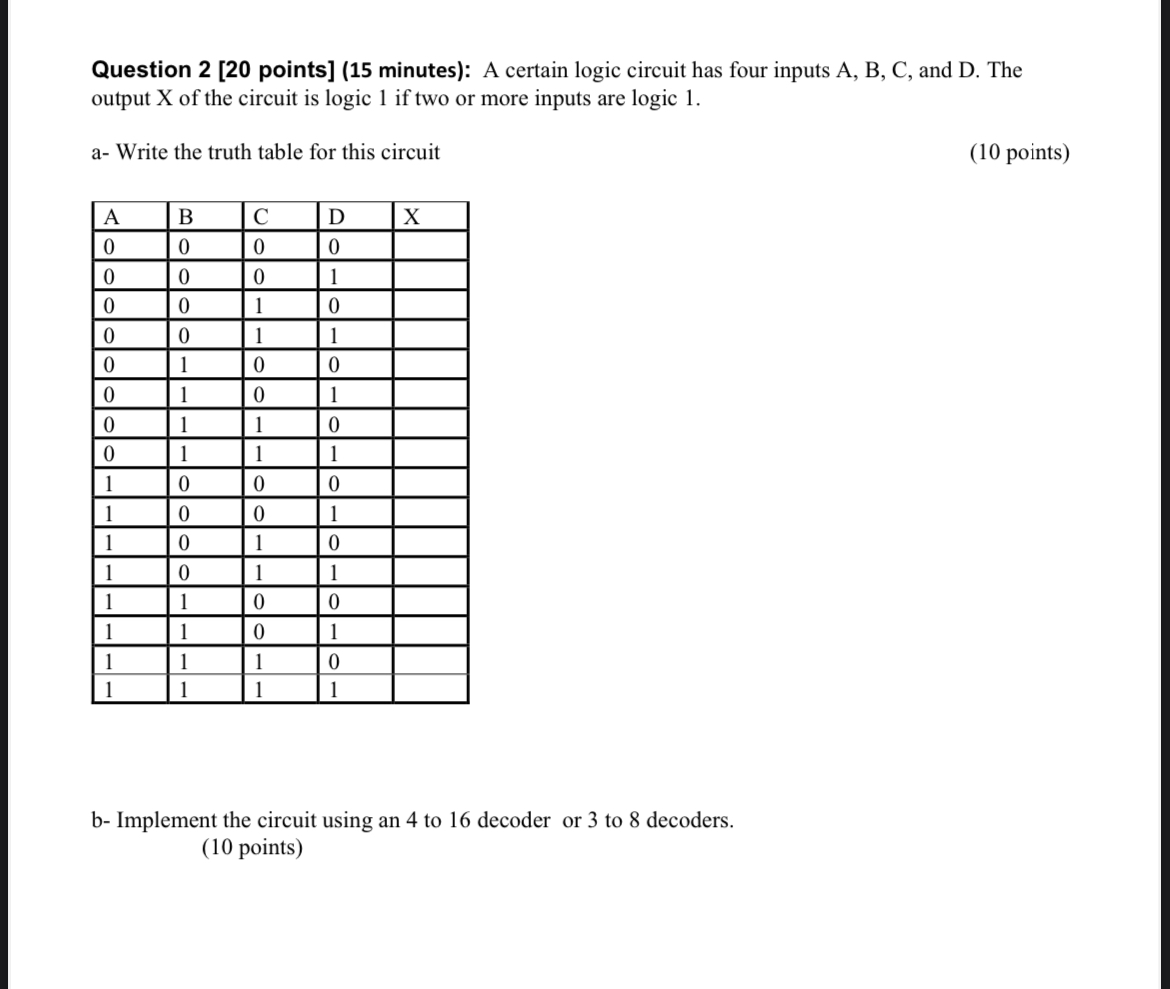

Question: Question 2 [ 2 0 points ] ( 1 5 minutes ) : A certain logic circuit has four inputs A , B , C

Question 2[20 points](15 minutes): A certain logic circuit has four inputs A, B, C, and D. The output X of the circuit is logic 1 if two or more inputs are logic 1.
a- Write the truth table for this circuit
(10 points)
\table[[A,B,C,D,X],[0,0,0,0,],[0,0,0,1,],[0,0,1,0,],[0,0,1,1,],[0,1,0,0,],[0,1,0,1,],[0,1,1,0,],[0,1,1,1,],[1,0,0,0,],[1,0,0,1,],[1,0,1,0,],[1,0,1,1,],[1,1,0,0,],[1,1,0,1,],[1,1,1,0,],[1,1,1,1,]]
b- Implement the circuit using an 4 to 16 decoder or 3 to 8 decoders.
(10 points)
please solve it hand writting (paper based)
please do your best , i will rate you
