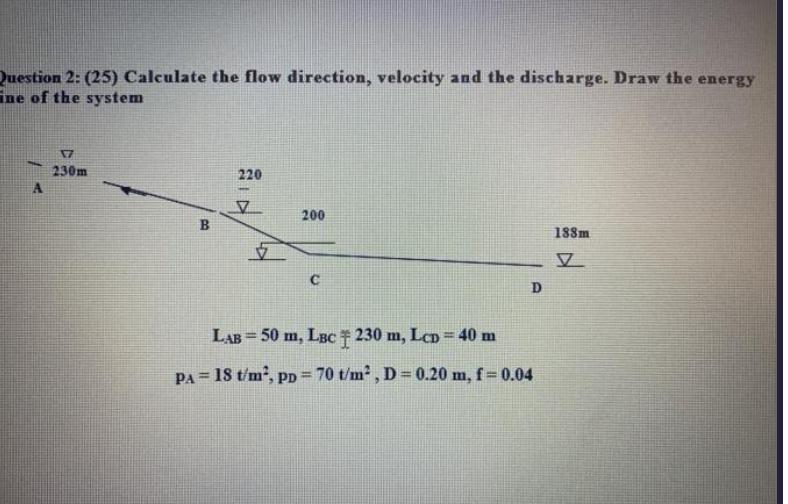

Question: question 2 : ( 2 5 ) Calculate the flow direction, velocity and the discharge. Draw the energy ine of the system L A B

question 2: (25) Calculate the flow direction, velocity and the discharge. Draw the energy ine of the system
LAB=50m,LBC230m,LCD=40m
pAA=18tm2,pD=70tm2,D=0.20m,f=0.04
question 2 : ( 2 5 ) Calculate the flow

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
