Question: Question 2 (20 Marks) For the project shown below: (a) Construct a Gantt chart (10 Marks) (b) Construct an AOA network representation for the project.

Question 2 (20 Marks) For the project shown

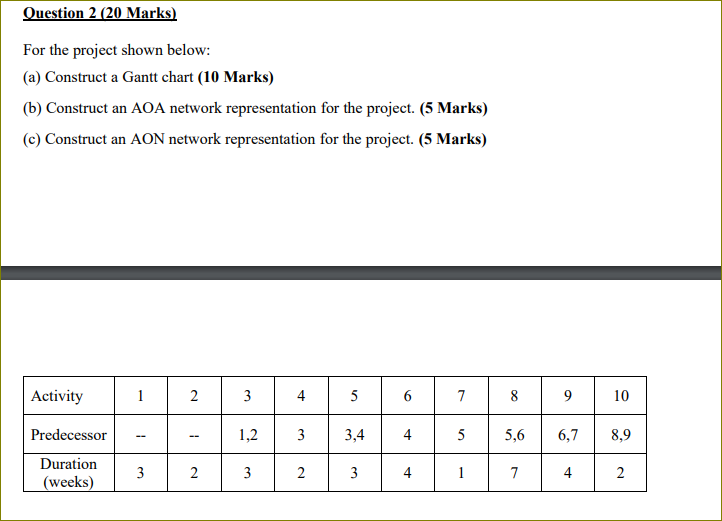

Question 2 (20 Marks) For the project shown below: (a) Construct a Gantt chart (10 Marks) (b) Construct an AOA network representation for the project. (5 Marks) (c) Construct an AON network representation for the project. (5 Marks) Activity 1 2 3 4 5 6 7 8 9 10 Predecessor -- 1,2 3 3,4 4 5 5,6 6,7 8,9 Duration (weeks) 3 3 2 3 2 3 4 1 7 4 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
