Question: Question 2 . a ) The 3 0 mm Diam solid steel shaft shown in Figure Q 2 has a shear modulus of G =

Question 2.

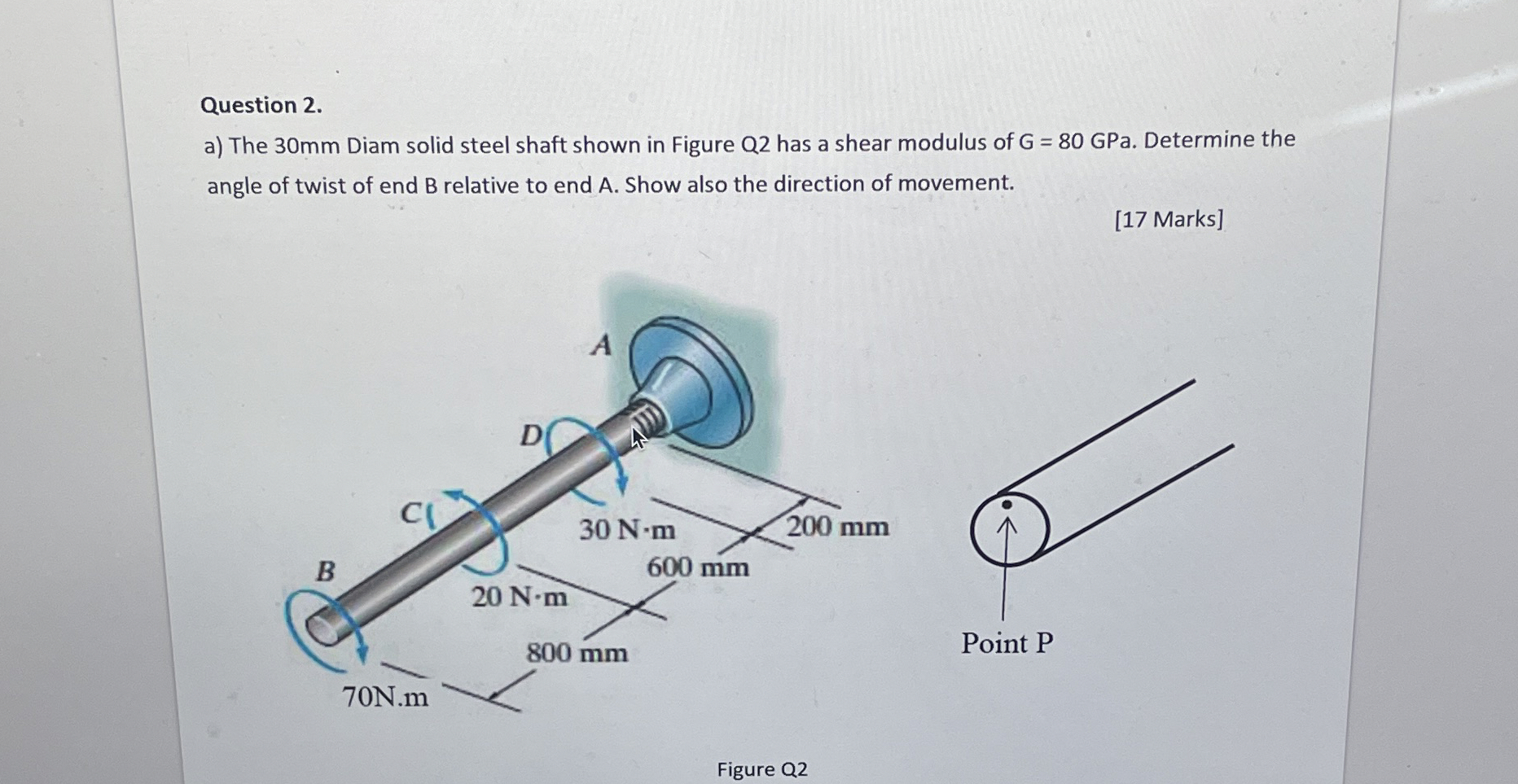

a) The 30 mm Diam solid steel shaft shown in Figure Q2 has a shear modulus of G =80GPa. Determine the angle of twist of end B relative to end A. Show also the direction of movement.
[17 Marks]
Figure Q2
Question 2 . a ) The 3 0 mm Diam solid steel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Question 2: a) A spherical pressure vessel with a diameter of 700mm operates at a pressure of 8 MPa. The maximum allowable tensile stress in the vessel is 150 MPa. Calculate the required thickness of...

Q:

Q4/ A solid steel shaft ABCDE show in fig.4 having diameter d = 30 mm turns freely in bearings at point A and E. The shaft is driven by a gear at C, which applies a torque T2= 450 N.m in the...

Q:

A solid steel shaft ABCDE (see Fig.) having diameter d = 35 mm turns freely in bearings at points A and E. The shaft is driven by a gear at C, which applies a torque T2 = 425 Nm in the direction...

Q:

Question 5 Start question on top of a new page [ 2 0 Marks ] a ) Determine the \ ( y \ ) - coordinate of the horizontal neutral axis. b ) Determine the second moment of area for the cross section...

Q:

uiz 1. 1) A solid steel shaft in a rolling mill transmits 20 kW of power at 2 Hz. Determine the smallest safe diameter of the shaft if the shear stress tw is not to exceed 40 MPa and the angle of...

Q:

QUESTION 2 a) Answer TRUE or FALSE for the following statements: (i) Buckling of a column occurs under transverse load. (ii) Pure buckling occurs in a long column. (iii) Pure buckling uses the...

Q:

The solid steel shaft A C has a diameter of 2 5 mm and is supported by smooth bearings at D and E . It is coupled to a motor at C , which delivers 3 kW of power to the shaft while it is turning at 5...

Q:

3. Question Three [20 marks total] (a) A wing box cross-section is shown in Figure 3a. This closed thin-walled tube provides the torsional stiffness of an aeroplane wing along its long axis. The...

Q:

PART II: STATIC FAILURE ANALYSIS (20 points) The shaft shown in figure is supported by the housing and made of a steel with a yield strength of 473 MPa and an ultimate strength of 642 MPa. The shaft...

Q:

Q 1 . A straight shaft ( shown in Figure 1 ( a ) ) with a constant circular cross section ( having a diameter of d shown in Figure 1 ( b ) ) is subjected to three pairs of external generalized forces...
