Question: QUESTION 2 Consider a frame shown in Figure 2 below with fixed supports at A and E . The frame has a point load of

QUESTION 2
Consider a frame shown in Figure 2 below with fixed supports at A and E. The frame
has a point load of 10kN at joint B and a point C. Calculate the end moments for all
the joints using the moment distribution method. Please note the sway effect is not
prevented.

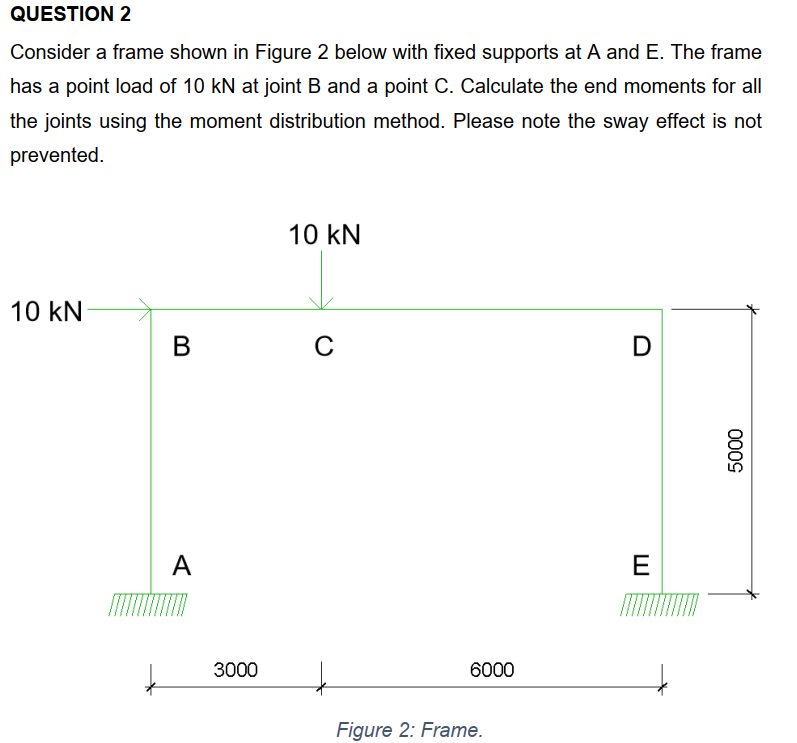

Figure 2: Frame.
Please do not copy and paste from other questions on Chegg as the same question has been posted many times and the answers for all vary greatly.
QUESTION 2 Consider a frame shown in Figure 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
