Question: Question 2: Consider the beam shown in Figure 2 which is subjected to a distributed load. You are required to: a) Determine the reaction force

Question 2: Consider the beam shown in Figure 2 which is

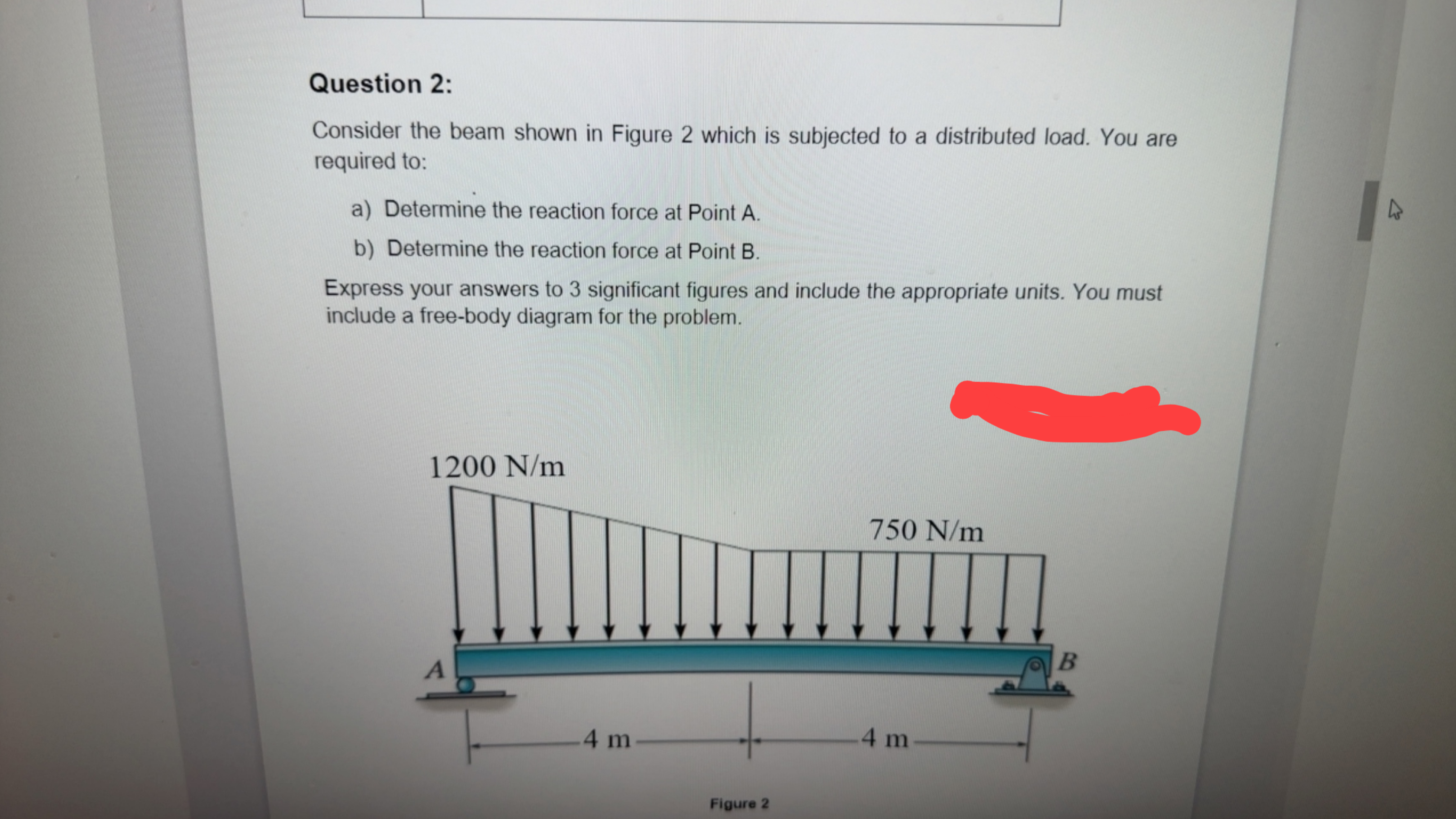

Question 2: Consider the beam shown in Figure 2 which is subjected to a distributed load. You are required to: a) Determine the reaction force at Point A. b) Determine the reaction force at Point B. Express your answers to 3 significant figures and include the appropriate units. You must include a free-body diagram for the problem. 1200 N/m 750 N/m B A 4 m 4 m Figure 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

vvilat is ule verucal teacuuri iutce at A ? Express your answer to three significant figures with appropriate units. Learning Goal: A beam with length L = 2 . 2 m is supported by a pin joint at A and...

Parts A , B , C , D , E , and F PLEASE Internal Loadings Developed in Structural Members ( Setup and Solve ) Learning Goal: To calculate the internal normal force, shear force, and bending moment at...

To calculate the internal normal force, shear force, and bending moment at a point in a beam. A beam with length L = 2 . 9 m is supported by a pin joint at A and a cable attached at C as shown in (...

Learning Goal: A beam with length LL = 3 mm is supported by a pin joint at AA and a cable attached at CC as shown in ( Figure 1 ) . It is subjected to the distributed load with w 1 w 1 = 1 . 6 kN /...

Learning Goal: A beam with length \ ( L = 3 \ mathrm { ~m } \ ) is supported by a pin joint at \ ( A \ ) and a cable attached at \ ( C \ ) as shown in ( Figure 1 ) . It is subjected to the...

Learning Goal: Express your answer to three significant figures with appropriate units. View Available Hint ( s ) Part E What is the internal shear force at point B ? Assume the force acts as shown,...

Part A Learning Goal: To calculate the internal normal force, shear force, and bending moment at a point in a beam. A beam with length L = 2 . 2 m is supported by a pin joint at A and a cable...

Learning Goal: To calculate the internal normal force, shear force, and bending moment at a point in a beam. A beam with length L = 2 . 2 m is supported by a pin joint at A and a cable attached at C...

Learning Goal: A beam with length L = 2 . 5 m is supported by a pin joint at A and a cable attached at C as shown in ( Figure 1 ) . It is subjected to the distributed load with w 1 = 1 . 2 k N m and...

Learning Goal: A beam with length L = 3 m is supported by a pin joint at A and a cable attached at C as shown in ( Figure 1 ) . It is subjected to the distributed load with w 1 = 1 . 7 k N m and w 2...
