Question: QUESTION 2 : ENERGY METHODS: FRAMES ( SDS ) Determine the horizontal displacement at joint D for the portal frame shown below using the virtual

QUESTION

2

: ENERGY METHODS: FRAMES

(

SDS

)

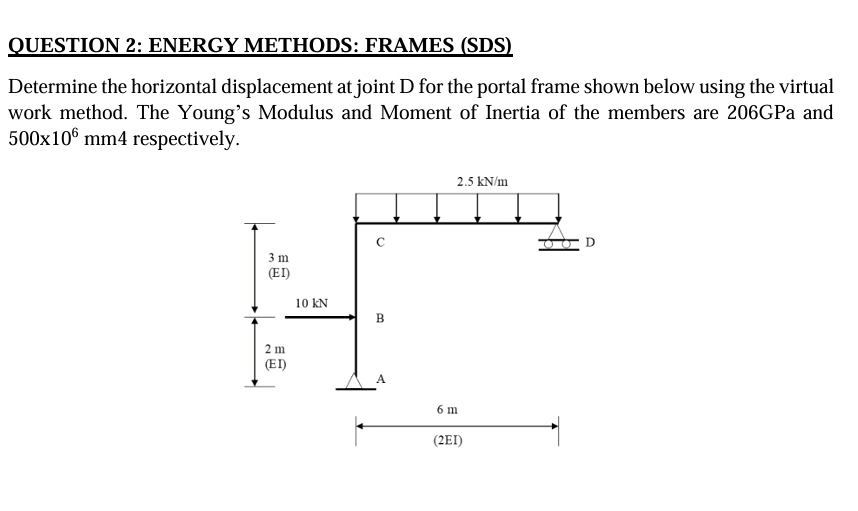

Determine the horizontal displacement at joint D for the portal frame shown below using the virtual work method. The Young's Modulus and Moment of Inertia of the members are

206

GPa and

500 10^{6} m m 4

respectively.

QUESTION 2 : ENERGY METHODS: FRAMES ( SDS )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
