Question: Four point loads 8 , 1 5 , 1 5 and 1 0 kN have center to center spacing of 2 m between consecutive loads

Four point loads 8,15,15 and 10 kN have center to center spacing of 2 m between consecutive loads and they
travel a girder of 30 m span from left to right with 10 kN load leading. Calculate the maximum bending moment and
shear force at 8 m from the left support. [Ans: max. negative S.F =8.2kN, max. positive S.F.=30.2kN,max.BM=
251.21 kNm ]

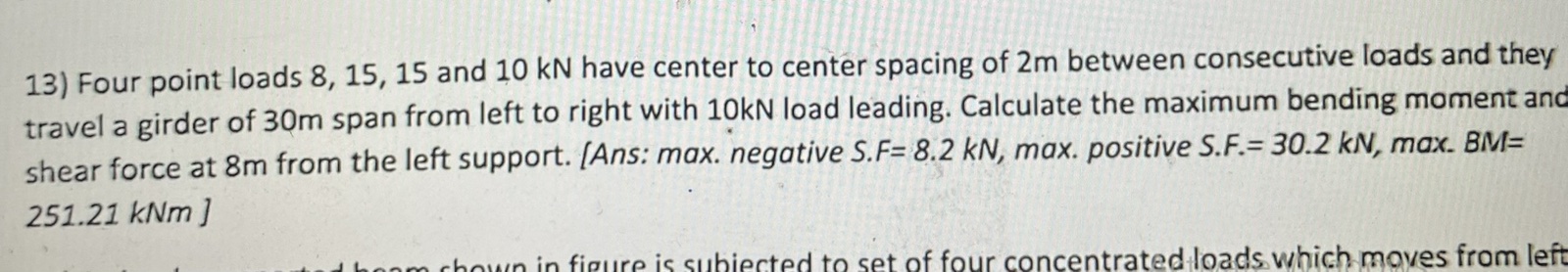

Four point loads 8 , 1 5 , 1 5 and 1 0 kN have

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
