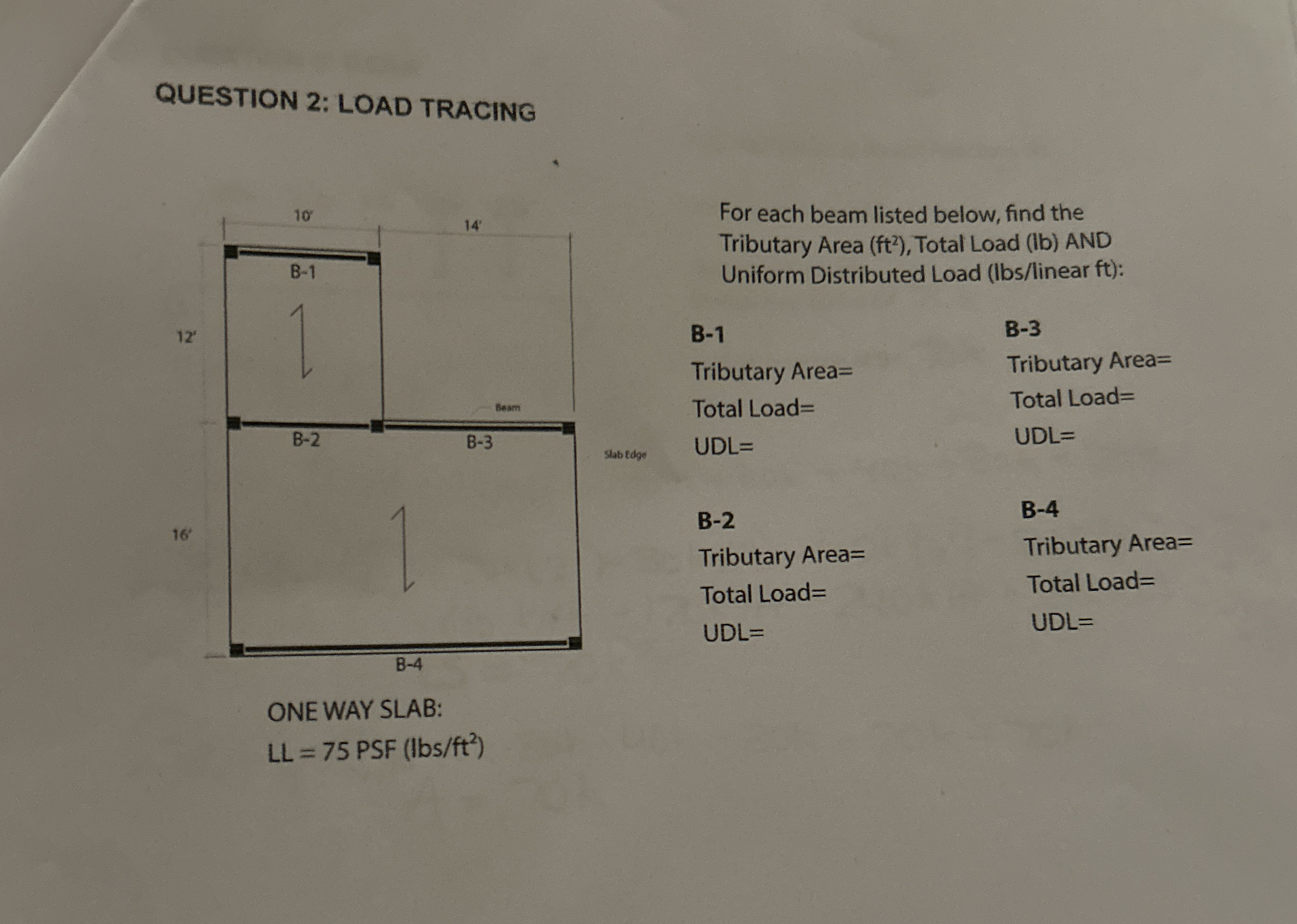

QUESTION $2$: LOAD TRACING

For each beam listed below, find the Tributary Area $(f{t}^2),$ Total Load $($ lb $)$ AND Uniform Distributed Load $($Ibs$/$linear ft$)$:

B$-1$

Tributary Area$=$

Total Load$=$

UDL$=$

B$-2$

Tributary Area$=$

Total Load$=$

UDL$=$

B$-3$

Tributary Area$=$

Total Load$=$

UDL $=$

B$-4$

Tributary Area$=$

Total Load$=$

UDL$=$

$LL=75$ PSF $($lbs$/$SF
