Question: Question 2 Two vertical forces are applied to a beam of the cross section shown. Determine the maximum tensile and compressive stresses in portion B

Question 2

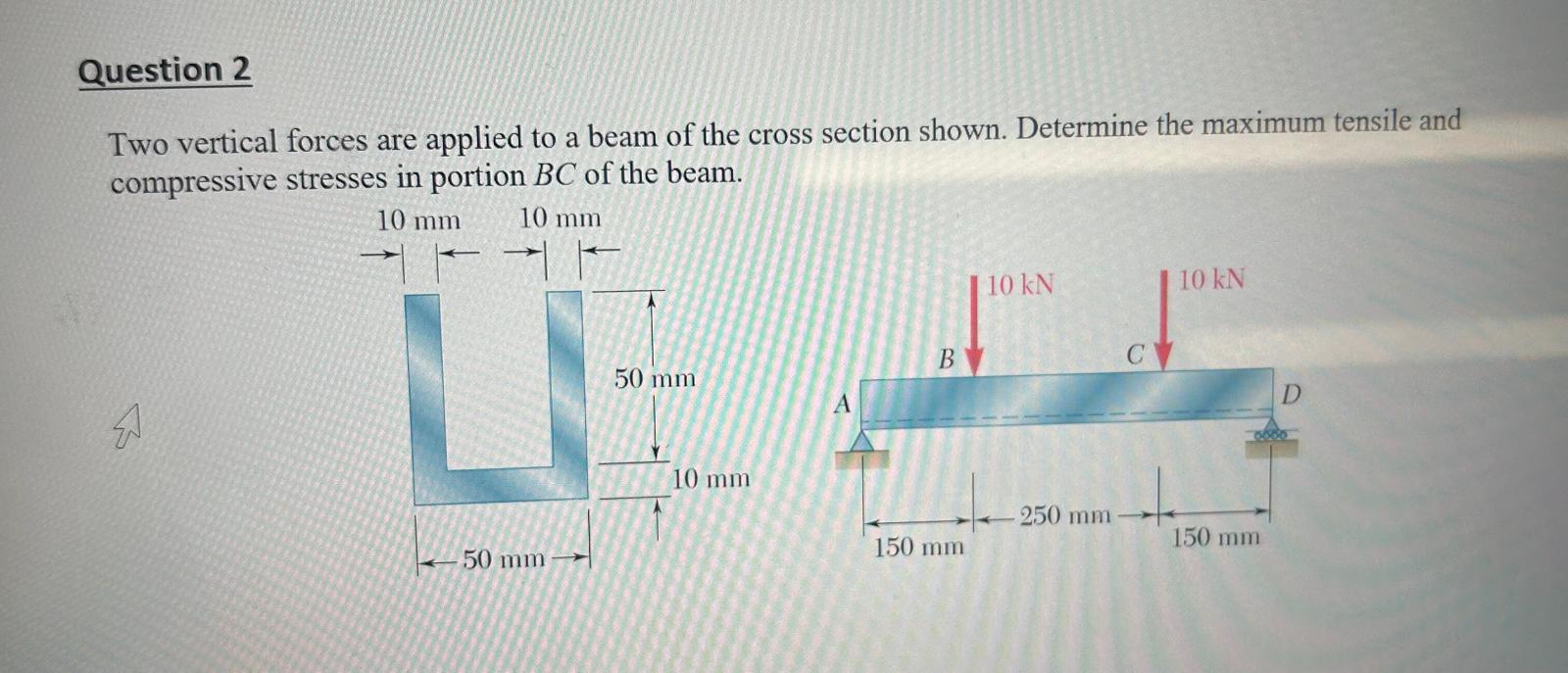

Two vertical forces are applied to a beam of the cross section shown. Determine the maximum tensile and
compressive stresses in portion BC of the beam.
Question 2 Two vertical forces are applied to a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
