Question: Question 3 ( 1 0 points ) The beam shown has a vertical shear of 6 , 0 0 0 # . What is the

Question 3(10 points)

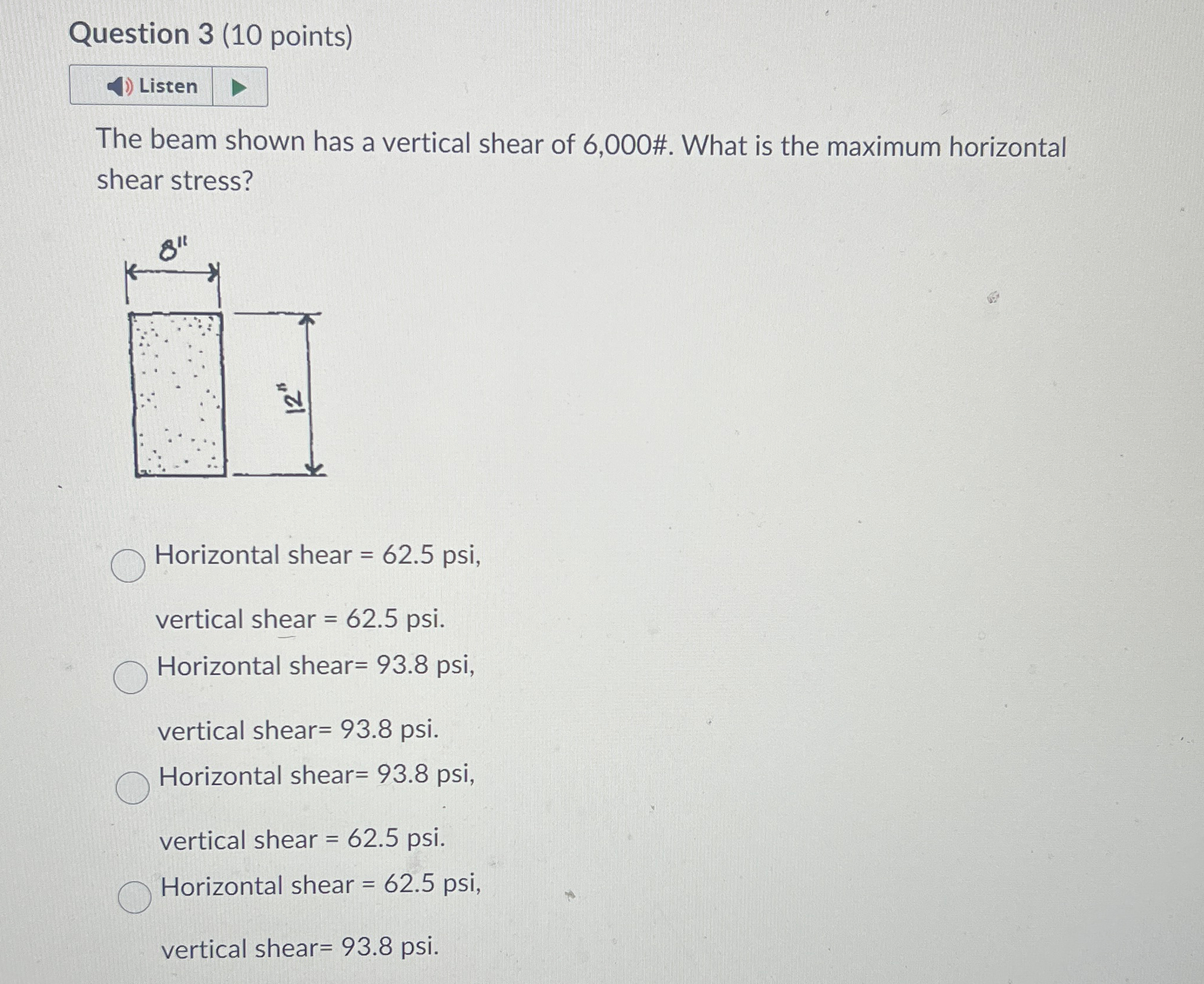

The beam shown has a vertical shear of 6,000#. What is the maximum horizontal shear stress?
Horizontal shear =62.5,
vertical shear =62.5.
Horizontal shear =93.8,
vertical shear =93.8.
Horizontal shear =93.8,
vertical shear =62.5.
Horizontal shear =62.5,
vertical shear =93.8.
Question 3 ( 1 0 points ) The beam shown has a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
