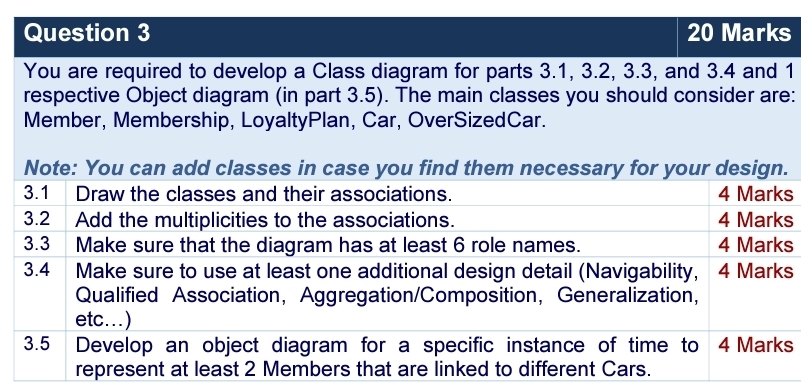

Question $3$

$20$ Marks

You are required to develop a Class diagram for parts $3\mathrm{.}1,3\mathrm{.}2,3\mathrm{.}3,$ and $3\mathrm{.}4$ and $1$ respective Object diagram $($in part $3\mathrm{.}5).$ The main classes you should consider are: Member, Membership, LoyaltyPlan, Car, OverSizedCar.

Note: You can add classes in case you find them necessary for your design.

$3\mathrm{.}1$ Draw the classes and their associations.

$3\mathrm{.}2$ Add the multiplicities to the associations.

$3\mathrm{.}3$ Make sure that the diagram has at least $6$ role names.

$3\mathrm{.}4$ Make sure to use at least one additional design detail $($Navigability$,$ Qualified Association, Aggregation$/$Composition$,$ Generalization, etc...$)$

$3\mathrm{.}5$ Develop an object diagram for a specific instance of time to $4$ Marks represent at least $2$ Members that are linked to different Cars.
