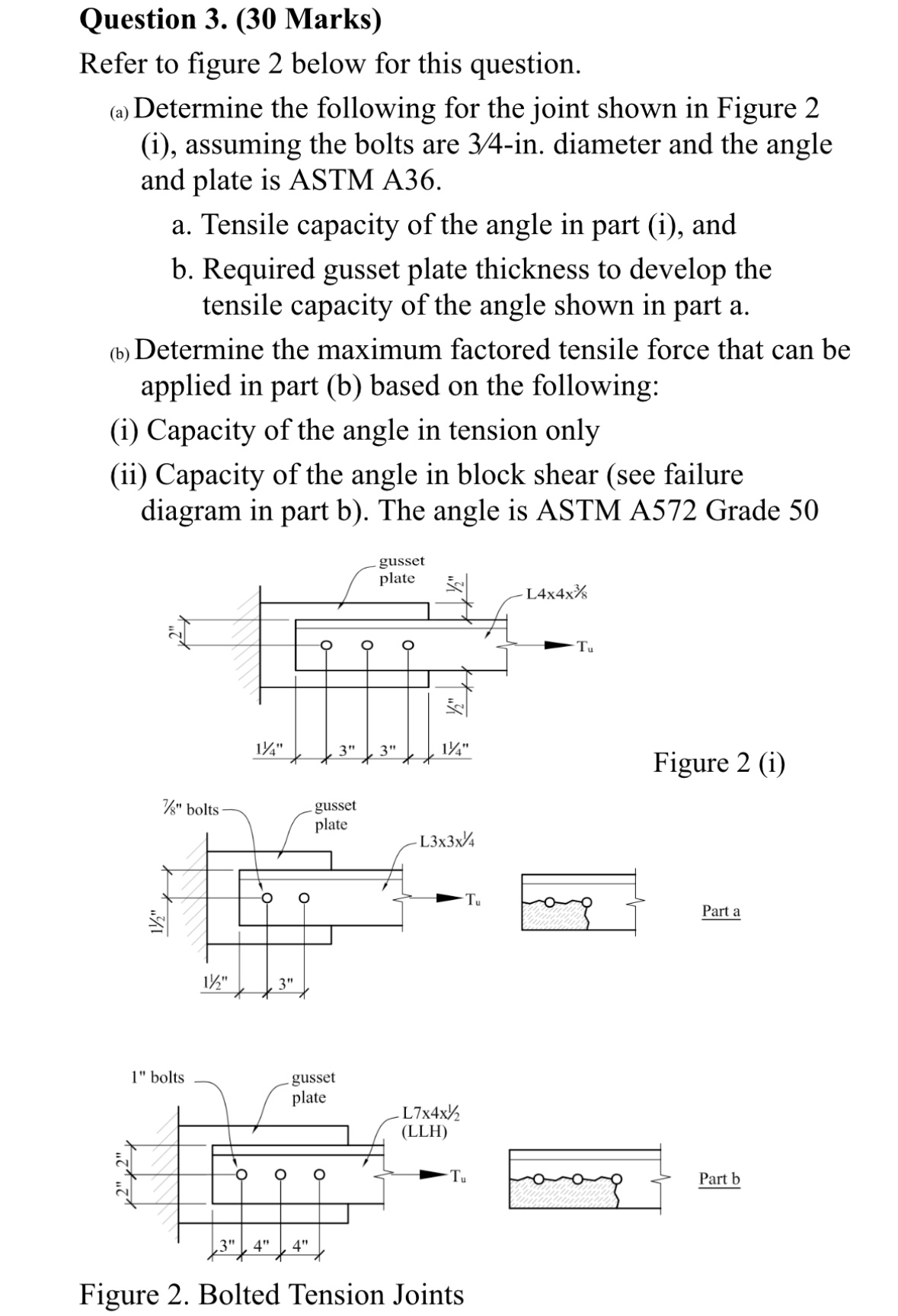

Question $3.(30$ Marks$)$

Refer to figure $2$ below for this question.

$($a$)$ Determine the following for the joint shown in Figure $2($i$),$ assuming the bolts are $3/4-$in$.$ diameter and the angle and plate is ASTM A$36.$

a$.$ Tensile capacity of the angle in part $($i$),$ and

b$.$ Required gusset plate thickness to develop the tensile capacity of the angle shown in part a$.$

$($b$)$ Determine the maximum factored tensile force that can be applied in part $($b$)$ based on the following:

$($i$)$ Capacity of the angle in tension only

$($ii$)$ Capacity of the angle in block shear $($see failure diagram in part b$).$ The angle is ASTM A$572$ Grade $50$

$($i$)$

Figure $2.$ Bolted Tension Joints
