Question: Question 3: Draw the Project Network Diagram (using Activity on Node or AON method) for following schedule. Also determine and provide the Critical Path and

Question 3: Draw the Project Network Diagram

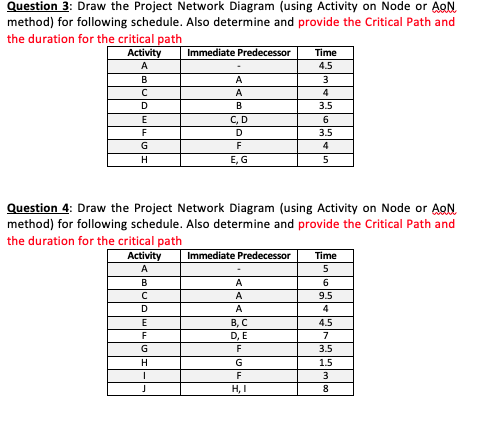

Question 3: Draw the Project Network Diagram (using Activity on Node or AON method) for following schedule. Also determine and provide the Critical Path and the duration for the critical path Activity Immediate Predecessor Time A 4.5 B A 3 4 D B 3.5 E C D 6 F D 3.5 G F 4 H E,G 5 Question 4: Draw the Project Network Diagram (using Activity on Node or AON method) for following schedule. Also determine and provide the Critical Path and the duration for the critical path Activity Immediate Predecessor A B D E F G H 1 J A B,C DE F G F HI Time 5 6 9.5 4 4.5 7 3.5 1.5 3 8
