Question: QUESTION 3 Given the following sequential circuit DA A 5 D. B a) Determine the flip-flop input equations. b) Find the next state equations. c)

QUESTION 3 Given the following sequential circuit DA A 5 D.

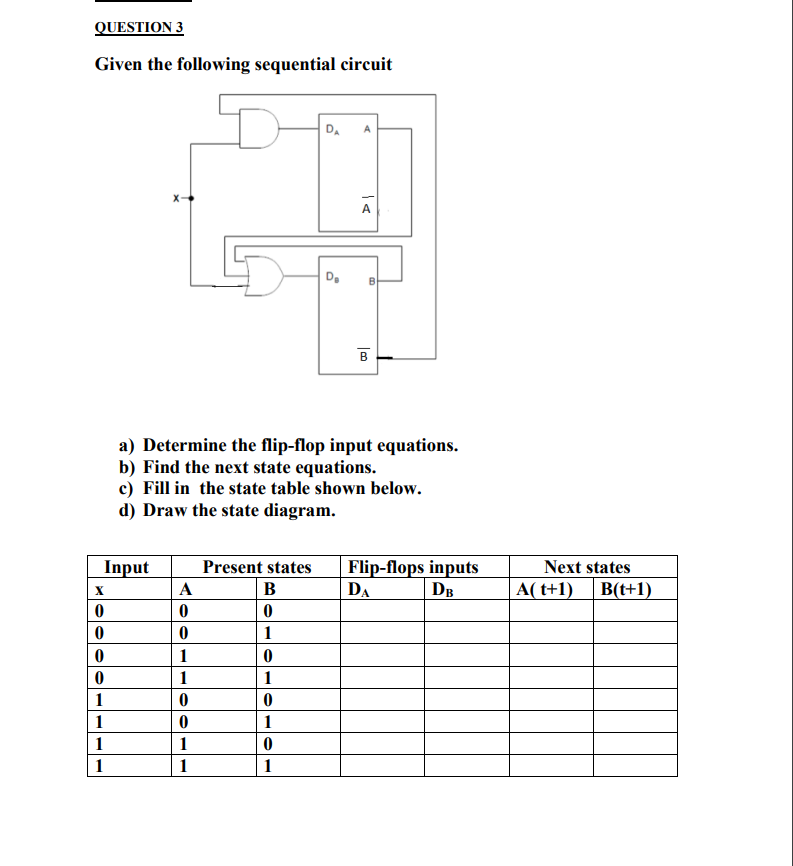

QUESTION 3 Given the following sequential circuit DA A 5 D. B a) Determine the flip-flop input equations. b) Find the next state equations. c) Fill in the state table shown below. d) Draw the state diagram. Input Flip-flops inputs DA DB Next states A(t+1) B(t+1) 0 0 0 0 1 1 1 1 A 0 0 1 1 0 0 1 1 Present states B 0 1 0 1 0 1 0 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Given the following sequential circuit DA A D. B a) Determine the flip-flop input equations. b) Find the next state equations. c) Fill in the state table shown below. d) Draw the state diagram
