Question $3$

i$)$ List the micro$-$instructions $($register transfer language instructions$)$ in the form of detailed flowcharts to execute the following instructions based on the design you have created in question $1$:

a$)$ MOV R$8,$ #$7$

b$)$ LOAD R$3,$ M$[$C$]$

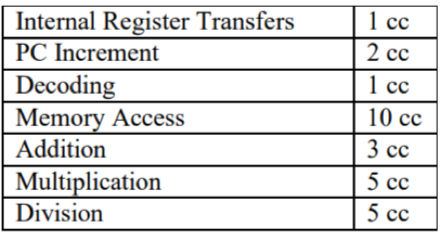

ii$)$ Assume the clock rate of the CPU is $2GHz,$ where every step requires a number of clock cycles $($cc$)$ as shown in the table below. Calculate the execution time $($in ns$)$ for all instructions mentioned above.
