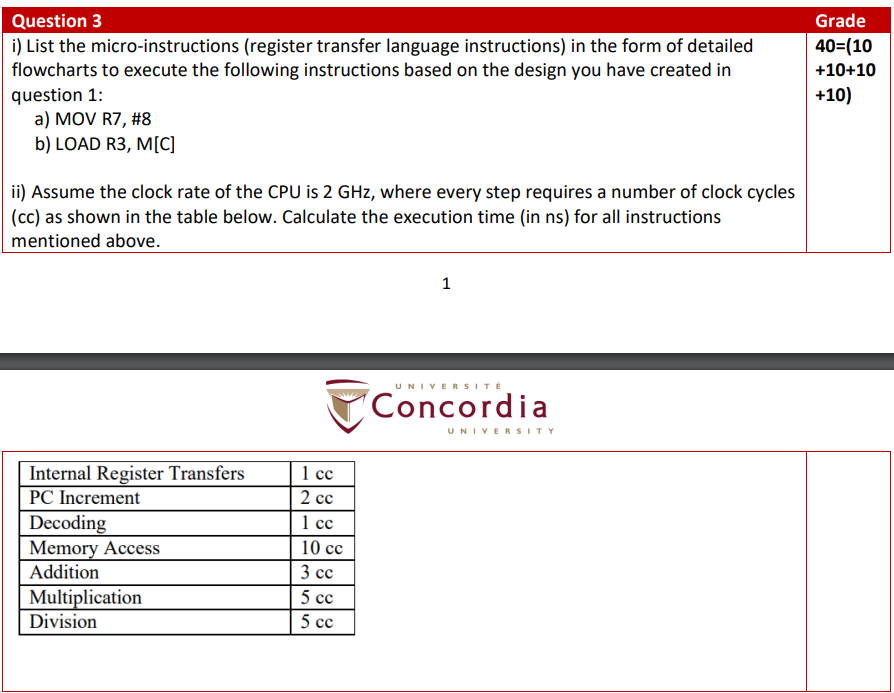

Question $3$

i$)$ List the micro$-$instructions $($register transfer language instructions$)$ in the form of detailed

flowcharts to execute the following instructions based on the design you have created in

question $1$:

a$)$ MOV R$7,$ #$8$

b$)$ LOAD R$3,$ M$[$C$]$

ii$)$ Assume the clock rate of the CPU is $2GHz,$ where every step requires a number of clock cycles

$($cc$)$ as shown in the table below. Calculate the execution time $($in ns$)$ for all instructions

mentioned above.
