Question $3$

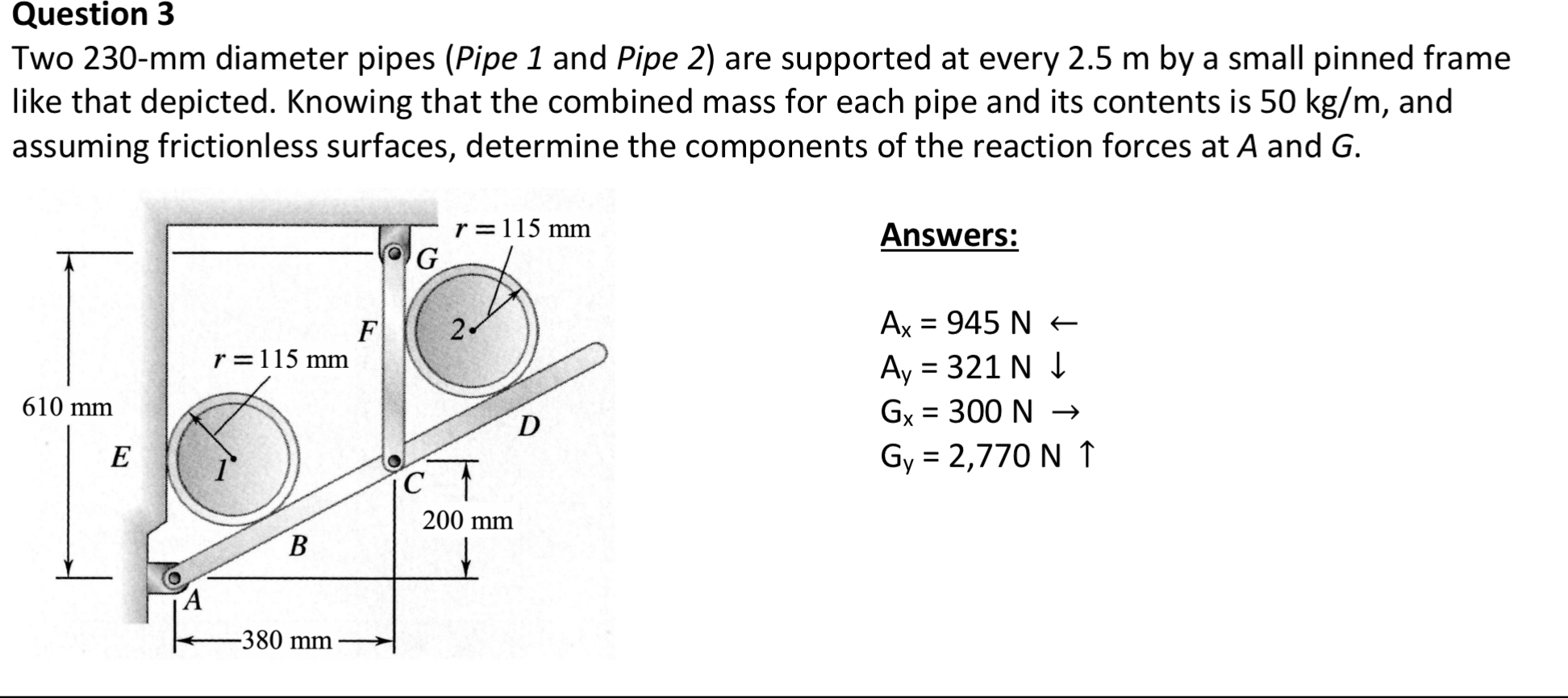

Two $230-$mm diameter pipes $($Pipe $1$ and Pipe $2)$ are supported at every $2\mathrm{.}5$ m by a small pinned frame like that depicted. Knowing that the combined mass for each pipe and its contents is $50k\frac{g}{m},$ and assuming frictionless surfaces, determine the components of the reaction forces at A and $G.$

Answers:

$A_x=945$Nlarr

$A_y=321$Ndarr

$G_x=300N$

$G_y=2,770arr$
