Required information

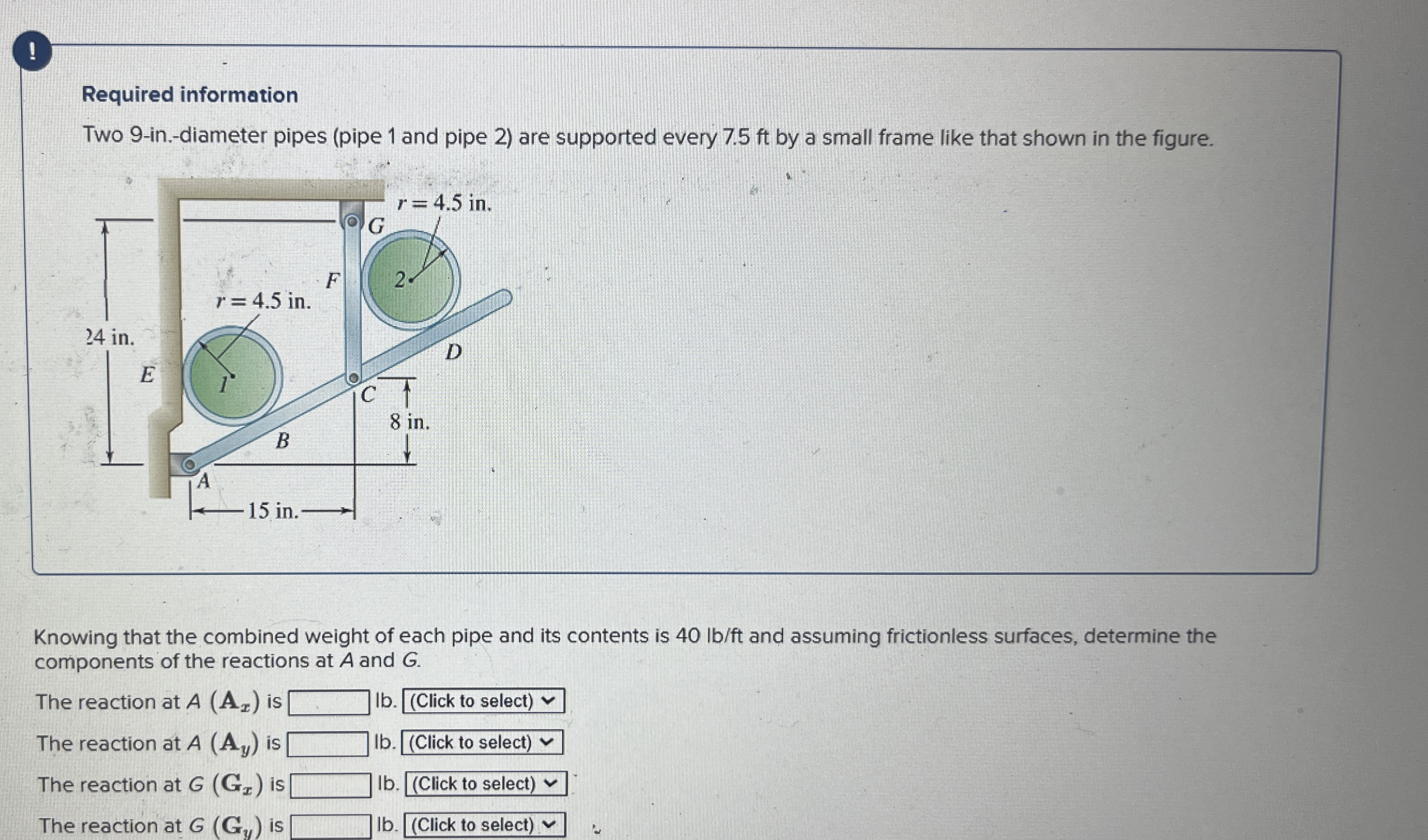

Two $9-$in$.-$diameter pipes $($pipe $1$ and pipe $2)$ are supported every $7\mathrm{.}5$ ft by a small frame like that shown in the figure.

Knowing that the combined weight of each pipe and its contents is $40l\frac{b}{f}t$ and assuming frictionless surfaces, determine the components of the reactions at A and $G.$

The reaction at $A(A_x)$ is

lb$.$

$($Click to select$)$

The reaction at $A(A_y)$ is $$ lb$.($Click to select$)$

The reaction at $G(G_x)$ is $$ lb$.($Click to select$)*$

$$

The reaction at $G(G_y)$ is $$ lb$.$ Click to select$)$

$$
