Question: Question 3 . Two large reservoirs are connected by a single pipeline of diameter D = 0 . 3 m as shown in the figure

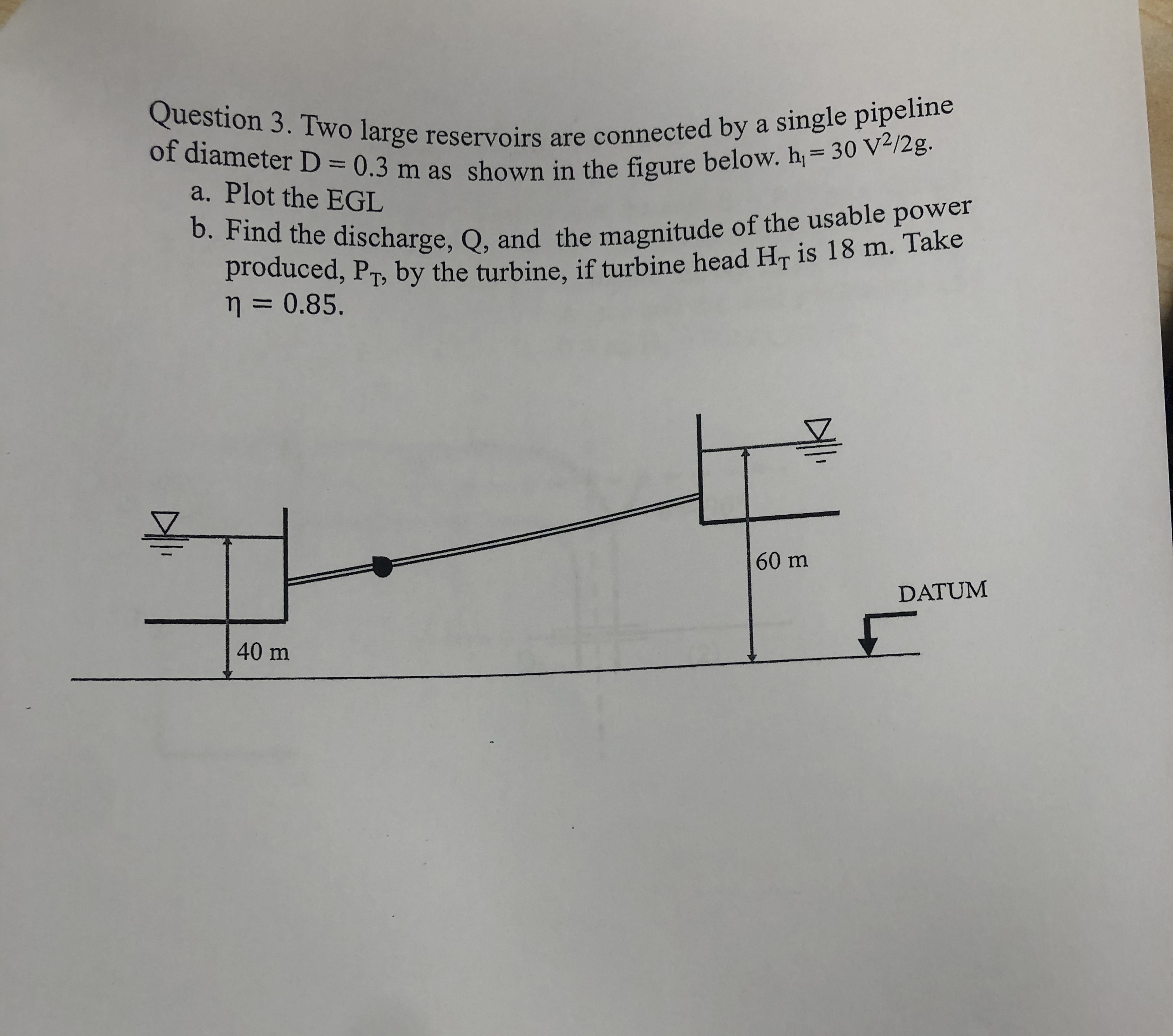

Question 3. Two large reservoirs are connected by a single pipeline of diameter D=0.3m as shown in the figure below. h1=30V22g.
a. Plot the EGL
b. Find the discharge, Q , and the magnitude of the usable power produced, PT, by the turbine, if turbine head HT is 18 m . Take =0.85.
Question 3 . Two large reservoirs are connected

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
