Question: * 1 5 - 4 . Determine the reactions at the supports. Assume ( 1 ) is a pin and ( 2 ) and (

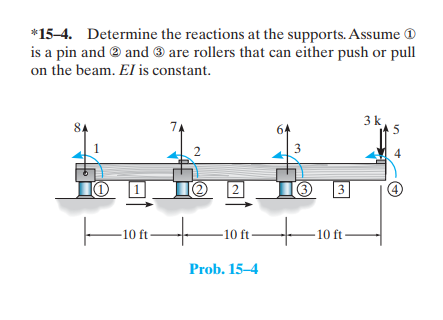

*15-4. Determine the reactions at the supports. Assume (1) is a pin and (2) and (3) are rollers that can either push or pull on the beam. \( E I \) is constant.
* 1 5 - 4 . Determine the reactions at the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
