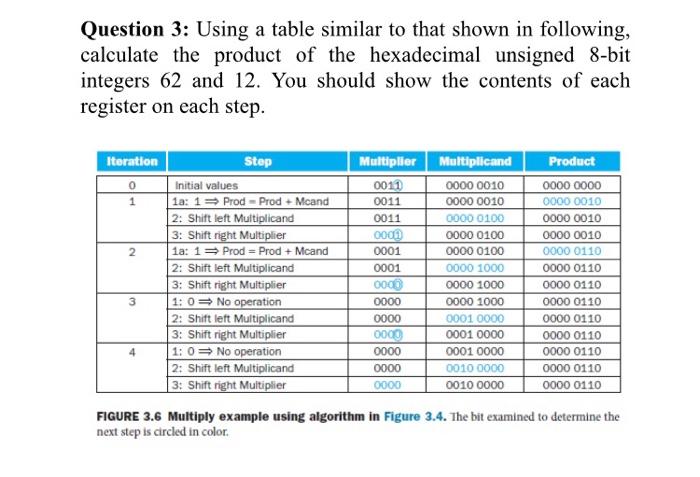

Question 3: Using a table similar to that shown in following, calculate the product of the hexadecimal unsigned 8-bit integers 62 and 12. You should show the contents of each register on each step. N Iteration Step Multiplier Multiplicand Product 0 Initial values 0011 0000 0010 0000 0000 1 1a: 1 = Prod - Prod Mcand 0011 0000 0010 0000 0010 2: Shift left Multiplicand 0011 0000 0100 0000 0010 3: Shift right Multiplier 0000 0000 0100 0000 0010 1a: 15 Prod = Prod + Mcand 0001 0000 0100 0000 0110 2: Shift left Multiplicand 0001 0000 1000 0000 0110 3: Shift right Multiplier 0000 0000 1000 0000 0110 3 1:0 = No operation 0000 0000 1000 0000 0110 2: Shift left Multiplicand 0000 0001 0000 0000 0110 3: Shift right Multiplier 0000 0001 0000 0000 0110 4 1: 0 No operation 0000 0001 0000 0000 0110 2: Shift left Multiplicand 0000 0010 0000 0000 0110 3: Shift right Multiplier 0000 0010 0000 0000 0110 FIGURE 3.6 Multiply example using algorithm in Figure 3.4. The bit examined to determine the next step is circled in color
