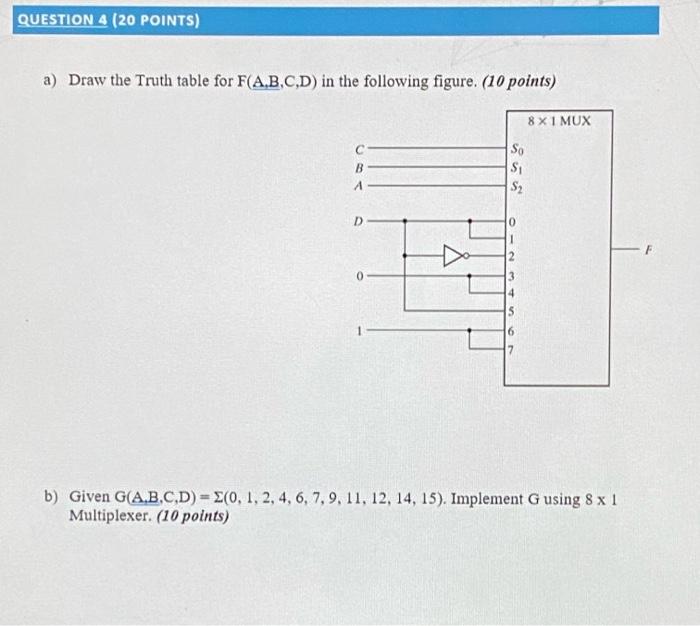

Question: QUESTION 4 (20 POINTS) a) Draw the Truth table for F(A,B,C,D) in the following figure. (10 points) 8 X 1 MUX B A So Si

QUESTION 4 (20 POINTS) a) Draw the Truth table for F(A,B,C,D) in the following figure. (10 points) 8 X 1 MUX B A So Si S2 D 0 F 0 1 6 b) Given G(A,B,C,D) = (0, 1, 2, 4, 6, 7, 9, 11, 12, 14, 15). Implement G using 8 x 1 Multiplexer. (10 points)
