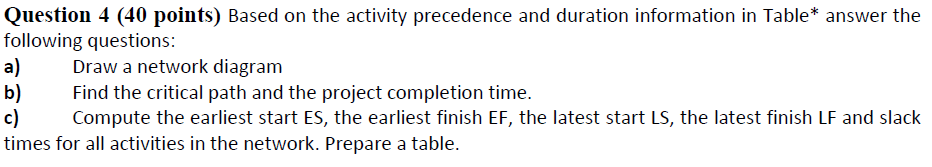

Question: Question 4 (40 points) Based on the activity precedence and duration information in Table* answer the following questions: a) Draw a network diagram Find the

Question 4 (40 points) Based on the activity

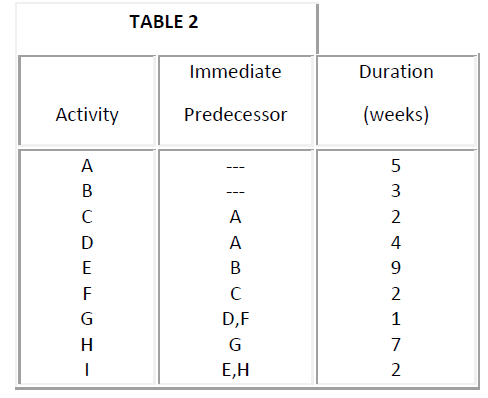

Question 4 (40 points) Based on the activity precedence and duration information in Table* answer the following questions: a) Draw a network diagram Find the critical path and the project completion time. c) Compute the earliest start ES, the earliest finish EF, the latest start LS, the latest finish LF and slack times for all activities in the network. Prepare a table. b) TABLE 2 Immediate Duration Activity Predecessor (weeks) A B D E A B C D,F 5 3 2 4 9 F G H 2 1 7 2 E,H

Step by Step Solution

There are 3 Steps involved in it
