Question: Question 4 ( 8 . 0 points ) - Practical Question A part program ( G&M codes ) needs to be created for below profile.

Question 4(8.0 points)- Practical Question

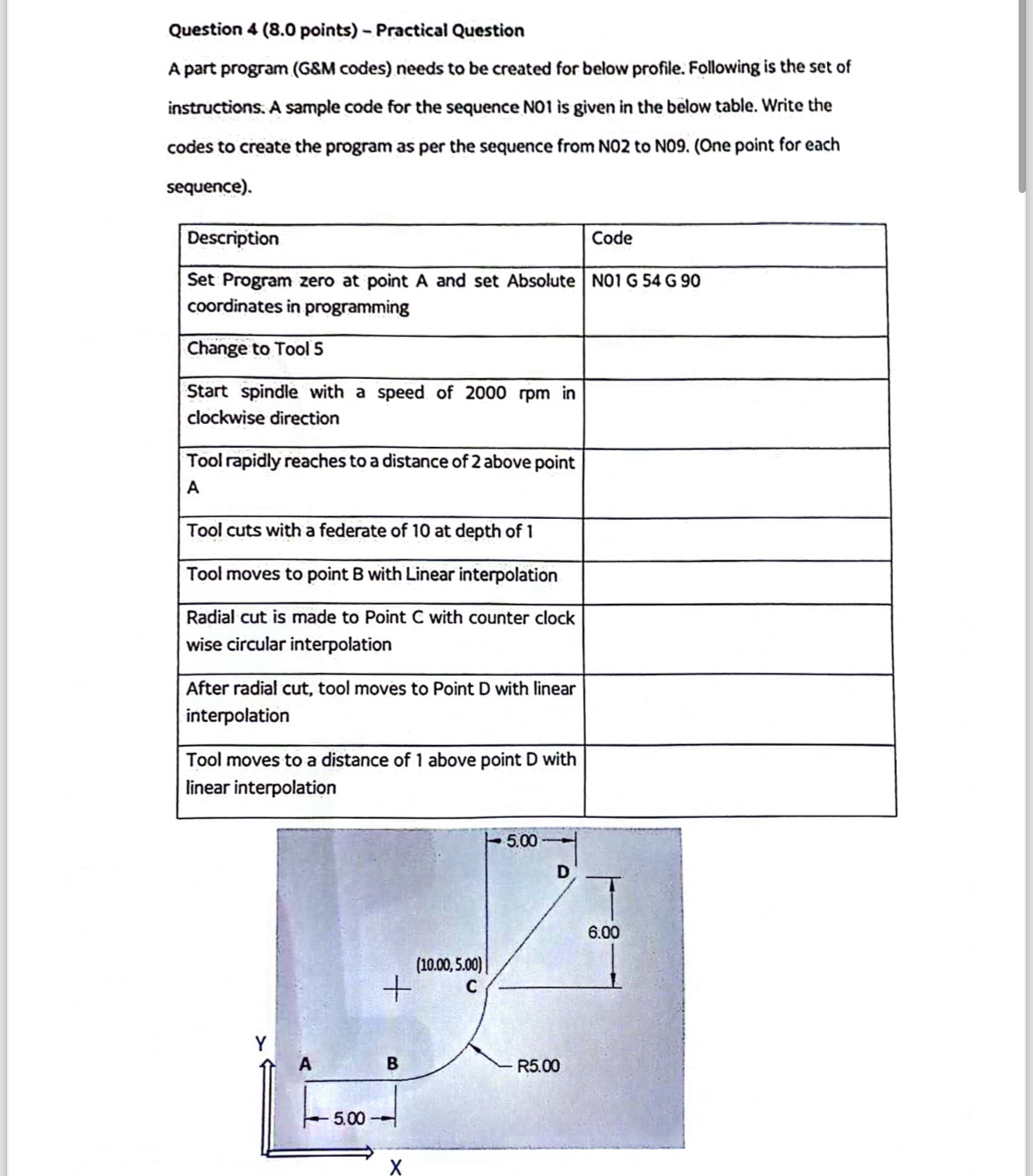

A part program (G&M codes) needs to be created for below profile. Following is the set of instructions. A sample code for the sequence NO1 is given in the below table. Write the codes to create the program as per the sequence from NO2 to NO9.(One point for each sequence).
\table[[Description,Code],[\table[[Set Program zero at point A and set Absolute],[coordinates in programming]],N01 G 54 G 90],[Change to Tool 5,],[\table[[Start spindle with a speed of 2000rpm in],[clockwise direction]],],[\table[[Tool rapidly reaches to a distance of 2 above point],[A]],],[Tool cuts with a federate of 10 at depth of 1,],[Tool moves to point B with Linear interpolation,],[\table[[Radial cut is made to Point C with counter clock],[wise circular interpolation]],],[\table[[After radial cut, tool moves to Point D with linear],[interpolation]],],[\table[[Tool moves to a distance of 1 above point D with],[linear interpolation]],]]
