Question: Question 4: Develop an activity diagram (AOA and AON) for the following project. Minimize crossing relationship lines (AON) and minimize dummy activities (AOA). (25 marks)

Question 4: Develop an activity diagram (AOA and

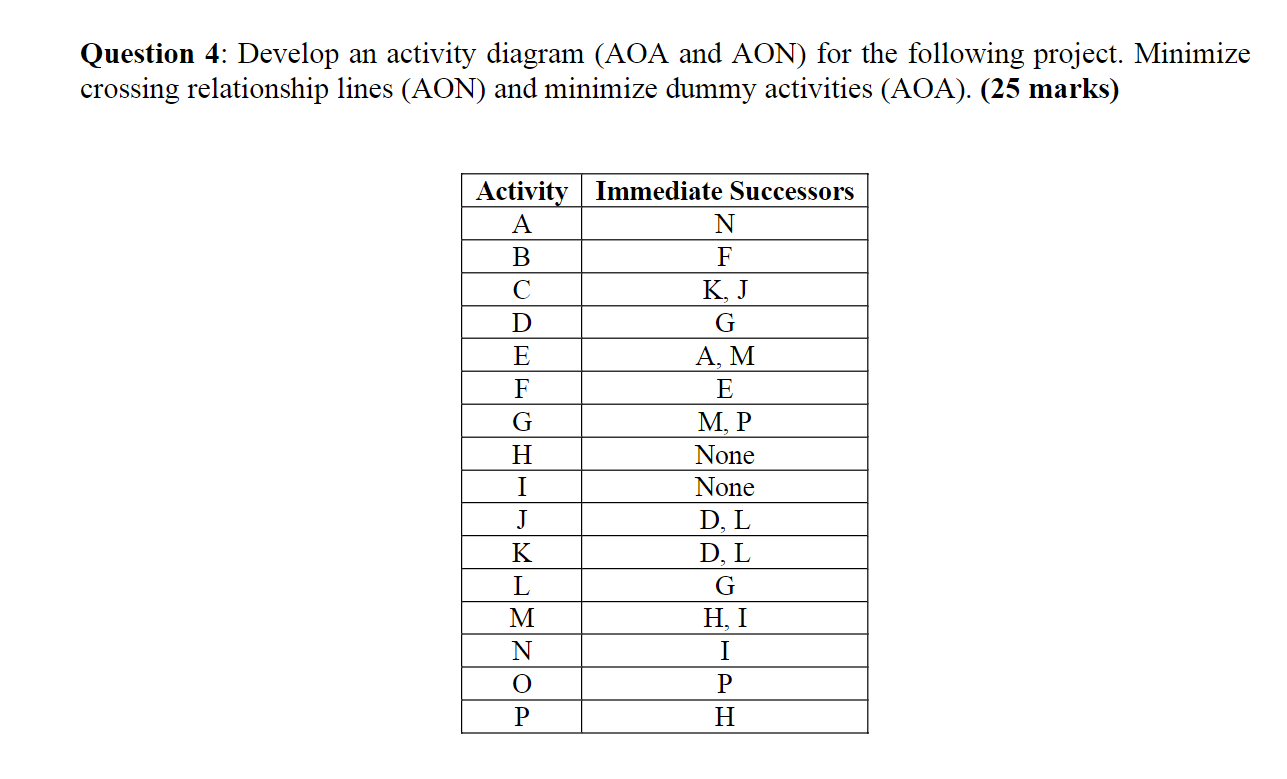

Question 4: Develop an activity diagram (AOA and AON) for the following project. Minimize crossing relationship lines (AON) and minimize dummy activities (AOA). (25 marks) A D F Activity | Immediate Successors F C KJ G A, M M, P None None DL K D, L L G M HI G H N P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
