Question$-4$

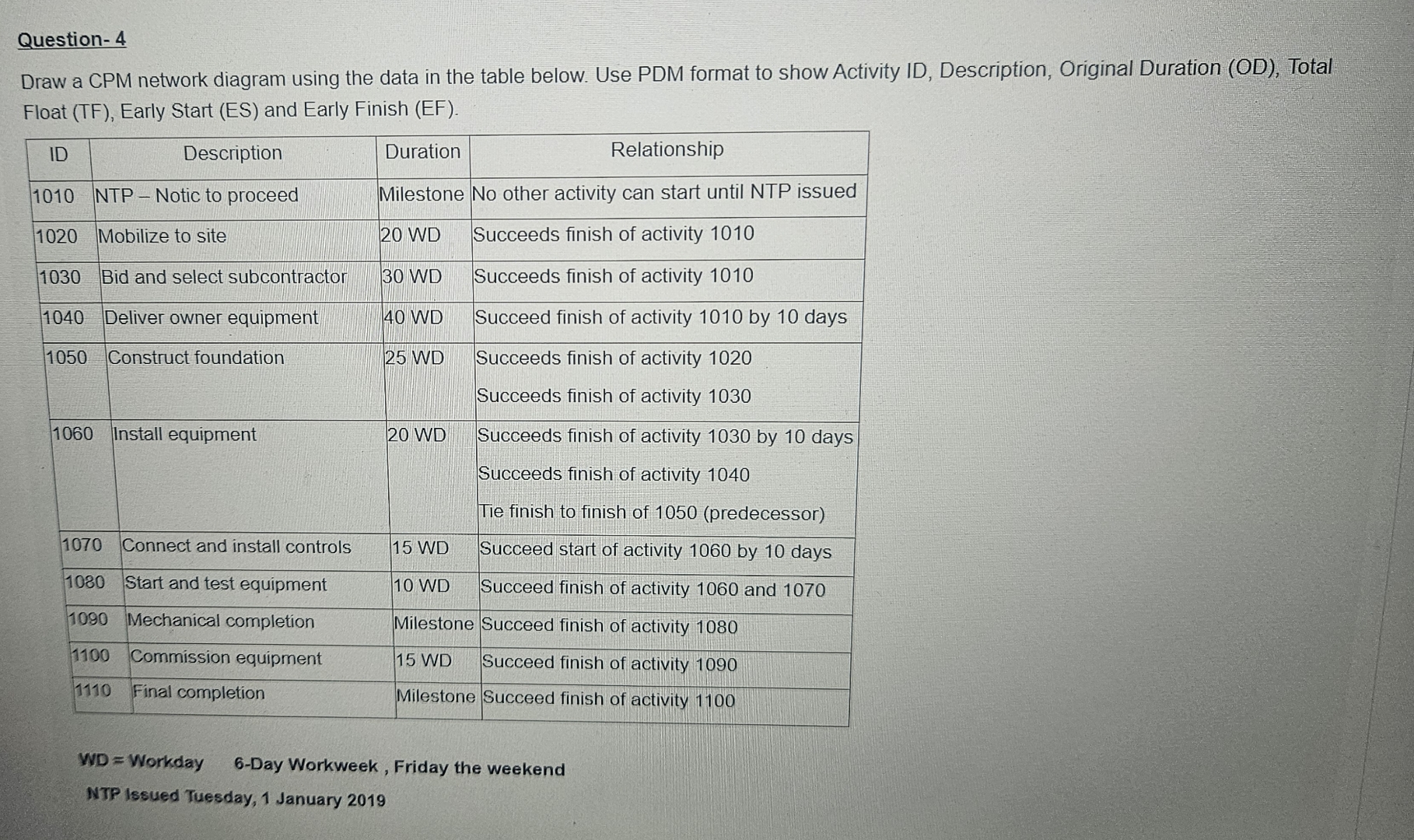

Draw a CPM network diagram using the data in the table below. Use PDM format to show Activity ID$,$ Description, Original Duration $($OD$),$ Total Float $($TF$),$ Early Start $($ES$)$ and Early Finish $($EF$).$

$\backslash$table$[[$ID$,$Description,Duration,Relationship$],[1010,$NTP $-$ Notic to proceed,Milestone,No other activity can start until NTP issued$],[1020,$Mobilize to site,$20$ WD$,$Succeeds finish of activity $1010],[1030,$Bid and select subcontractor,$30$ WD$,$Succeeds finish of activity $1010],[1040,$Deliver owner equipment,$40$ WD$,$Succeed finish of activity $1010$ by $10$ days$],[1050,$Construct foundation,$25$ WD$,$Succeeds finish of activity $1020],[1060,$Install equipment,,Succeeds finish of activity $1030],[1070,$Connect and install controls,$15$ WD$,$Succeed start of activity $1060$ by $10$ days$],[1080,$Start and test equipment,$10$ WD$,$Succeed finish of activity $1060$ and $1070],[1090,$Mechanical completion,Milestone,Succeed finish of activity $1080],[1100,$Commission equipment,$15$ WD$,$Succeed finish of activity $1090],[1110,$Final completion,Milestone,Succeed finish of activity $1100]]$

WD $=$ Workday $6-$Day Workweek, Friday the weekend

NTP Issued Tuesday, $1$ January $2019$
