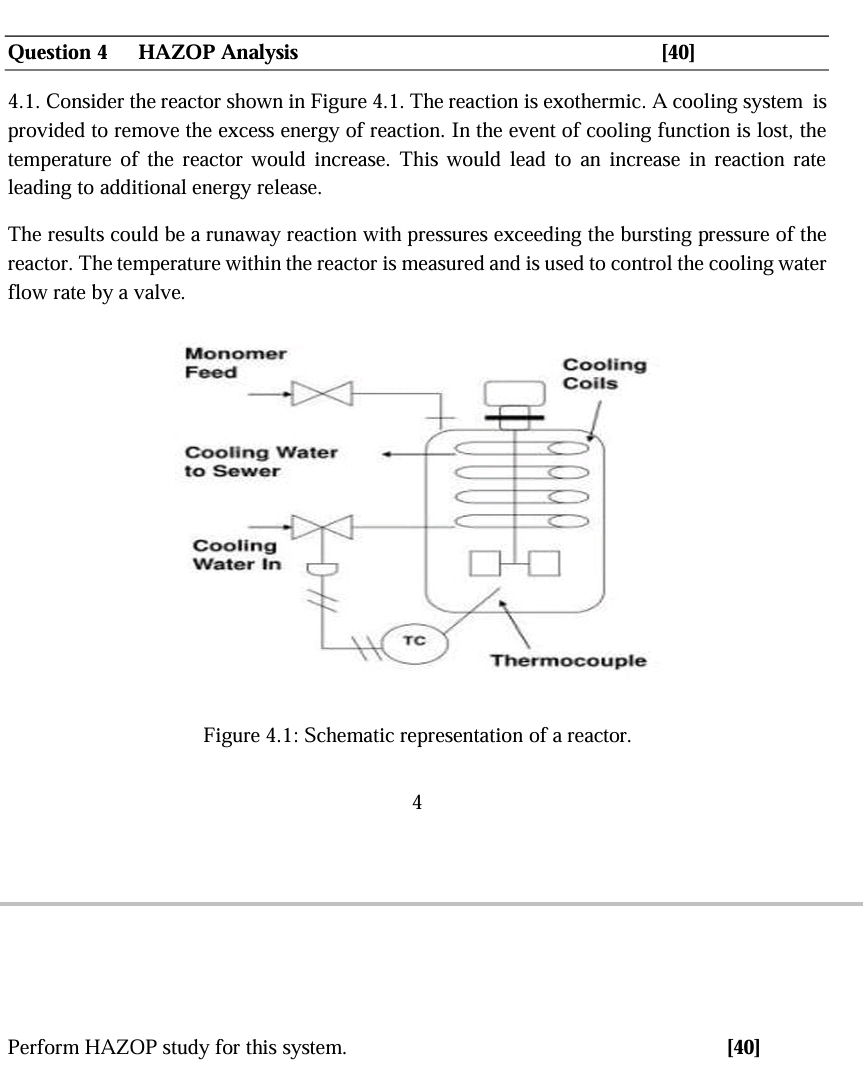

Question $4$ HAZOP Analysis

$[40]$

$4\mathrm{.}1.$ Consider the reactor shown in Figure $4\mathrm{.}1.$ The reaction is exothermic. A cooling system is provided to remove the excess energy of reaction. In the event of cooling function is lost, the temperature of the reactor would increase. This would lead to an increase in reaction rate leading to additional energy release.

The results could be a runaway reaction with pressures exceeding the bursting pressure of the reactor. The temperature within the reactor is measured and is used to control the cooling water flow rate by a valve.

Figure $4\mathrm{.}1$: Schematic representation of a reactor.

$4$

Perform HAZOP study for this system.

$[40]$
