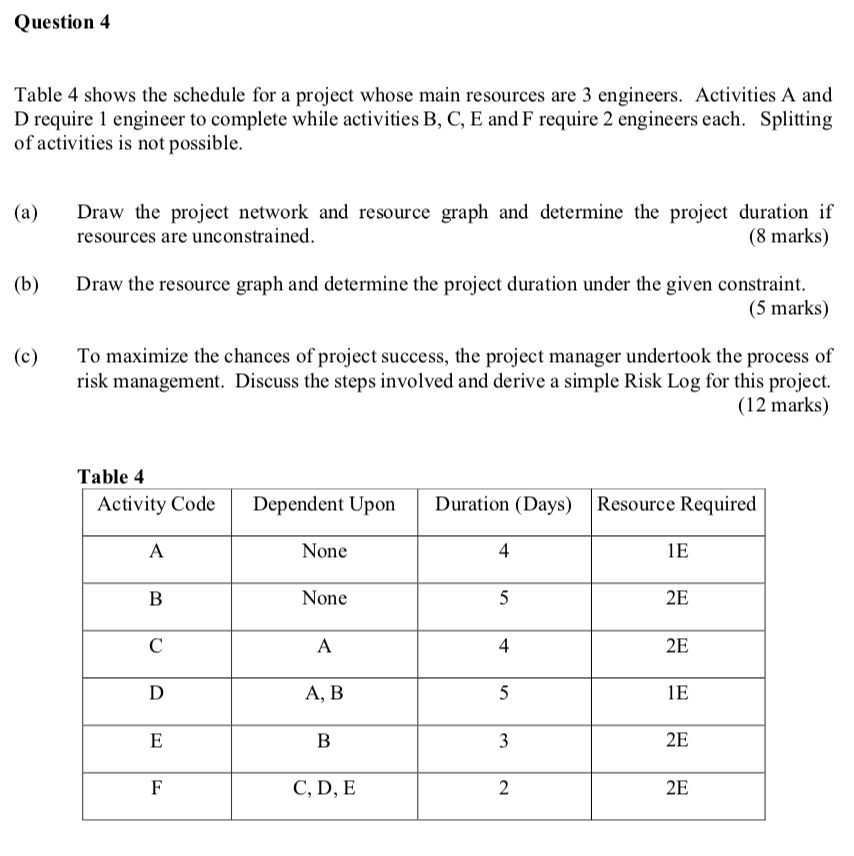

Question 4 Table 4 shows the schedule for a project whose main resources are 3 engineers. Activities A and D require 1 engineer to complete while activities B, C, E and F require 2 engineers each. Splitting of activities is not possible. (a) Draw the project network and resource graph and determine the project duration if resources are unconstrained. (8 marks) (b) Draw the resource graph and determine the project duration under the given constraint. (5 marks) (C) To maximize the chances of project success, the project manager undertook the process of risk management. Discuss the steps involved and derive a simple Risk Log for this project. (12 marks) Table 4 Activity Code Dependent Upon Duration (Days) Resource Required A None 4 1E B None 5 2E A 4 2E D A, B 5 1E E B 3 2E F C,D,E 2 2E Question 4 Table 4 shows the schedule for a project whose main resources are 3 engineers. Activities A and D require 1 engineer to complete while activities B, C, E and F require 2 engineers each. Splitting of activities is not possible. (a) Draw the project network and resource graph and determine the project duration if resources are unconstrained. (8 marks) (b) Draw the resource graph and determine the project duration under the given constraint. (5 marks) (C) To maximize the chances of project success, the project manager undertook the process of risk management. Discuss the steps involved and derive a simple Risk Log for this project. (12 marks) Table 4 Activity Code Dependent Upon Duration (Days) Resource Required A None 4 1E B None 5 2E A 4 2E D A, B 5 1E E B 3 2E F C,D,E 2 2E
