Question: Question 4 The beam shown below is supported by a fixed end and a roller. Which of the following statements are true? ( Select all

Question 4
The beam shown below is supported by a fixed end and a roller.
Which of the following statements are true? (Select all that apply).
The structure is statically determinate.
The structure is statically indeterminate.
The structure is improperly constrained.
The structure is properly constrained.
Question 3

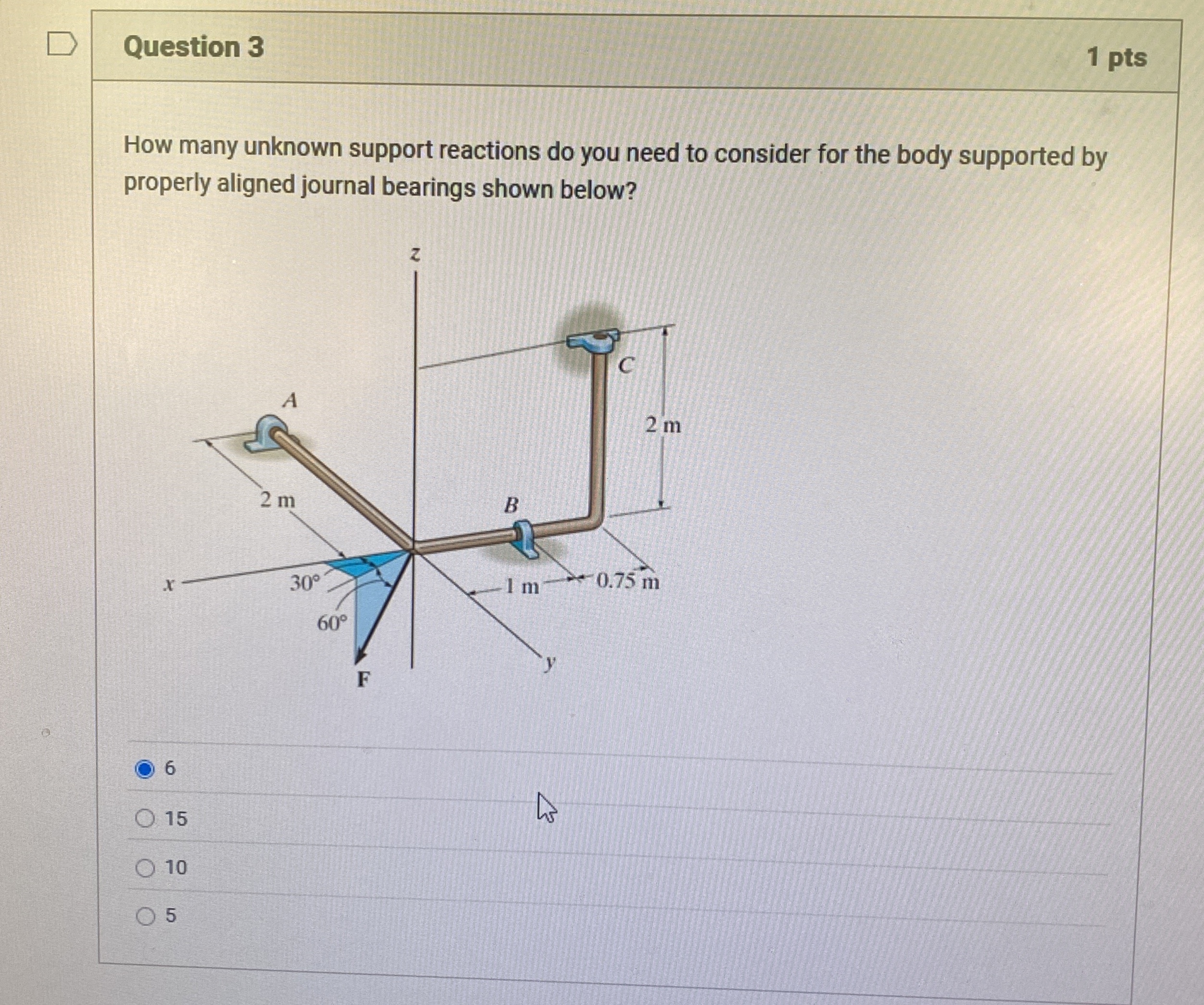

How many unknown support reactions do you need to consider for the body supported by
properly aligned journal bearings shown below?
6
15
10
5
Question 4 The beam shown below is supported by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
