Question: Question - 4 ) Using the construction system given below, the Angle Method, a ) Calculate the rotations of the node points B and C

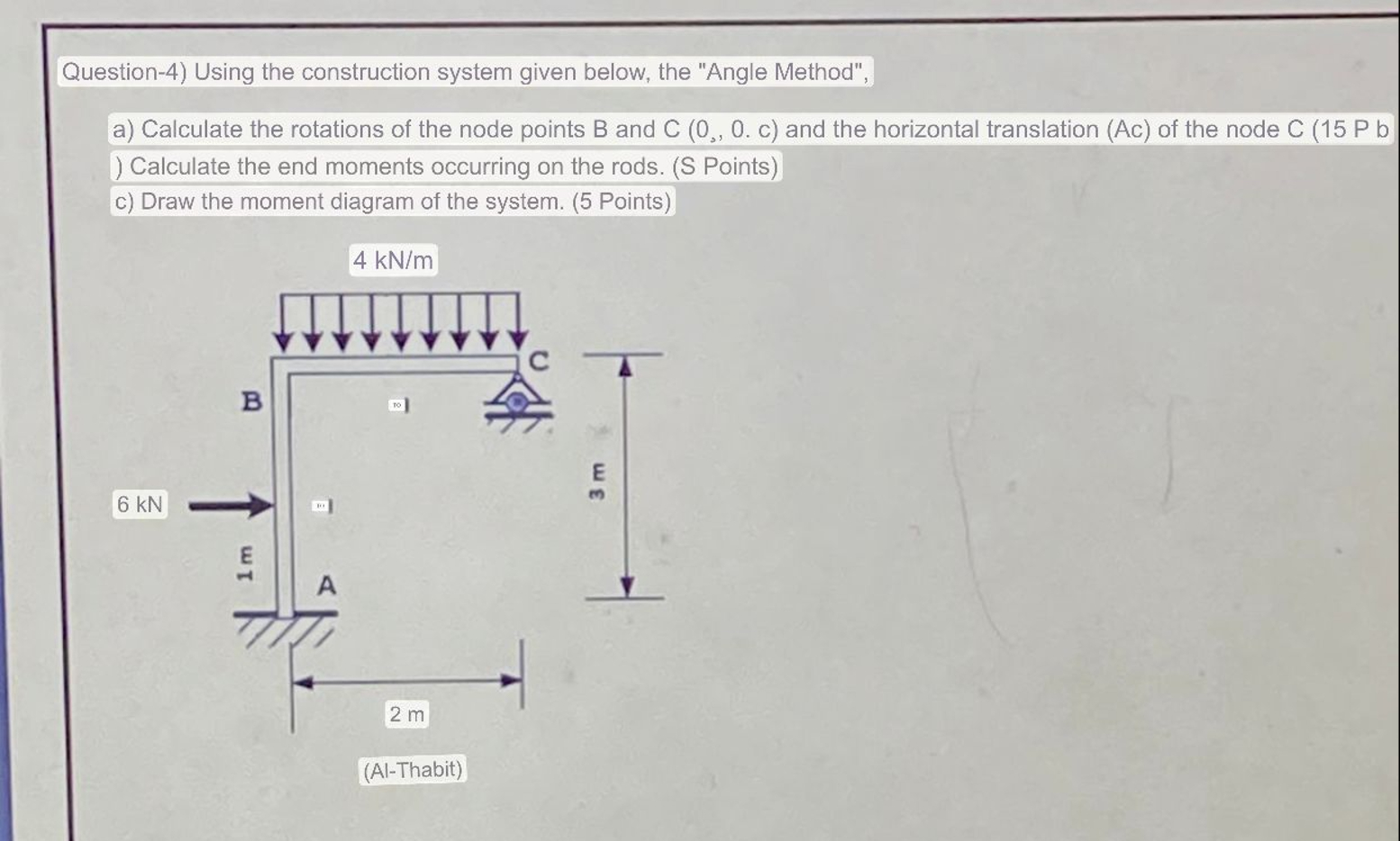

Question-4) Using the construction system given below, the "Angle Method",
a) Calculate the rotations of the node points B and C(0,0.c) and the horizontal translation (Ac) of the node C(15 P b
Calculate the end moments occurring on the rods. (S Points)
c) Draw the moment diagram of the system. (5 Points)
Question - 4 ) Using the construction system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
