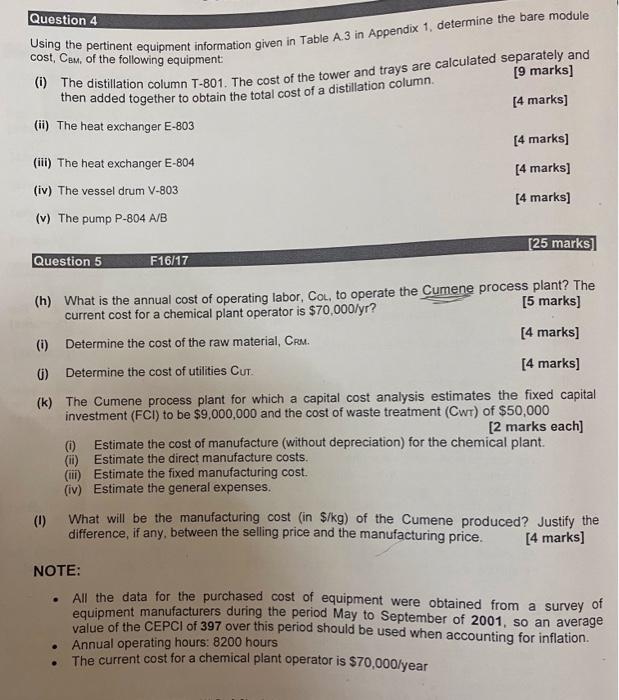

Question 4 Using the pertinent equipment information given in Table A 3 in Appendix 1, determine the bare module cost, Cem, of the following equipment (1) The distillation column T-801. The cost of the tower and trays are calculated separately and [9 marks] then added together to obtain the total cost of a distillation column. [4 marks] (ii) The heat exchanger E-803 [4 marks] (ii) The heat exchanger E-804 [4 marks] (iv) The vessel drum V-803 [4 marks] (v) The pump P-804 A/B [25 marks) Question 5 F16/17 (h) What is the annual cost of operating labor, Col, to operate the Cumene process plant? The (5 marks] current cost for a chemical plant operator is $70,000/yr? (0) Determine the cost of the raw material, CRM [4 marks] 0) Determine the cost of utilities Cut [4 marks] (k) The Cumene process plant for which a capital cost analysis estimates the fixed capital investment (FCI) to be $9,000,000 and the cost of waste treatment (Cwt) of $50,000 [2 marks each) 0 Estimate the cost of manufacture (without depreciation) for the chemical plant. (ii) Estimate the direct manufacture costs. (1) Estimate the fixed manufacturing cost. (iv) Estimate the general expenses. (1) What will be the manufacturing cost (in $/kg) of the Cumene produced? Justify the difference, if any, between the selling price and the manufacturing price. [4 marks] . NOTE: All the data for the purchased cost of equipment were obtained from a survey of equipment manufacturers during the period May to September of 2001, so an average value of the CEPCI of 397 over this period should be used when accounting for inflation. Annual operating hours: 8200 hours The current cost for a chemical plant operator is $70,000/year
