Question: Question 5 ( 1 0 Marks Total ) : a ) Draw the free - body diagram for the shaft at section C - C

Question 5(10 Marks Total):

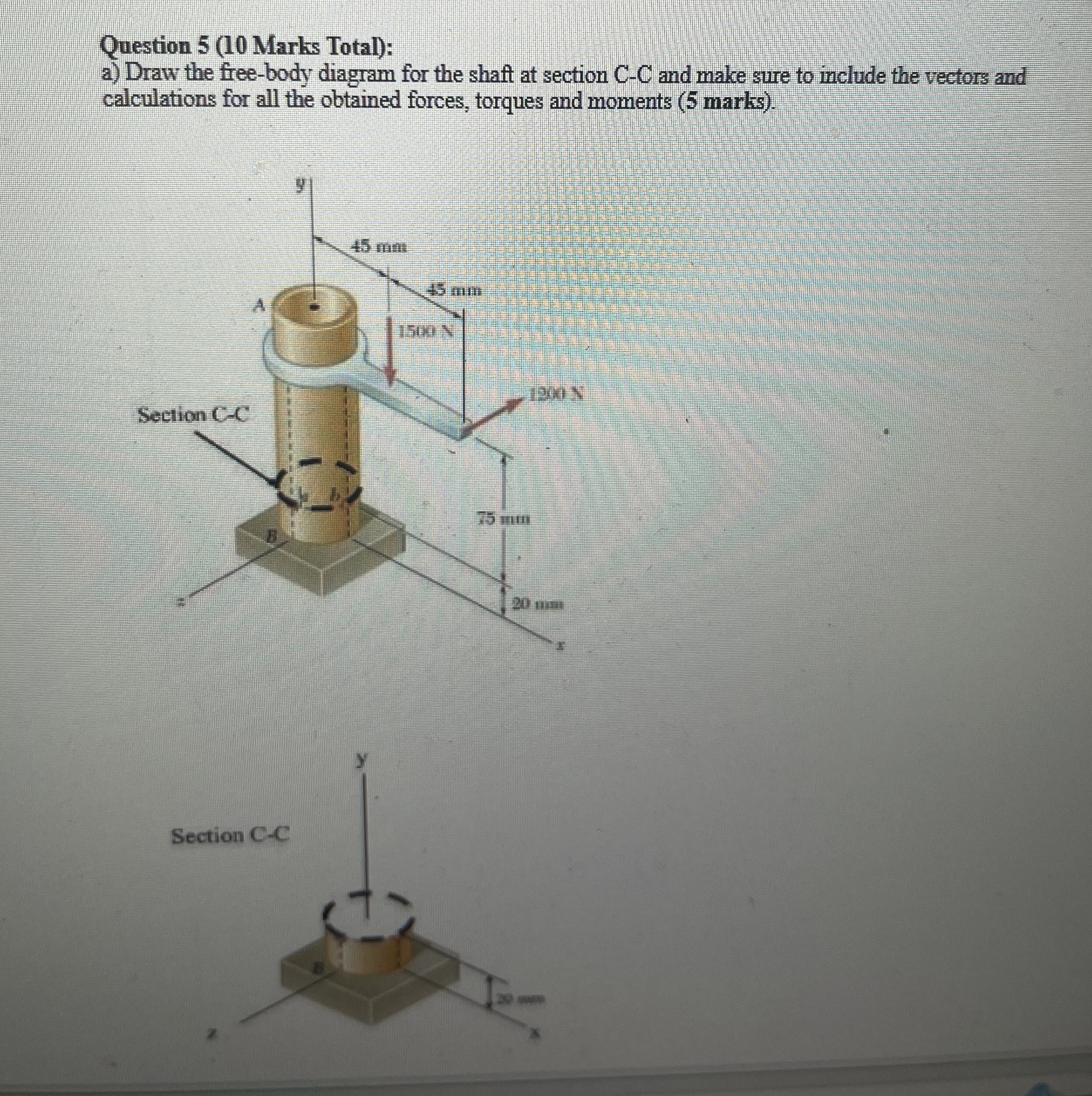

a) Draw the free-body diagram for the shaft at section C-C and make sure to include the vectors and calculations for all the obtained forces, torques and moments (5 marks).
Question 5 ( 1 0 Marks Total ) : a ) Draw the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
