Question: Question ( 5 ) : ( 1 5 points ) For the following feedback RC oscillator, answer the following questions. You must show vomr work

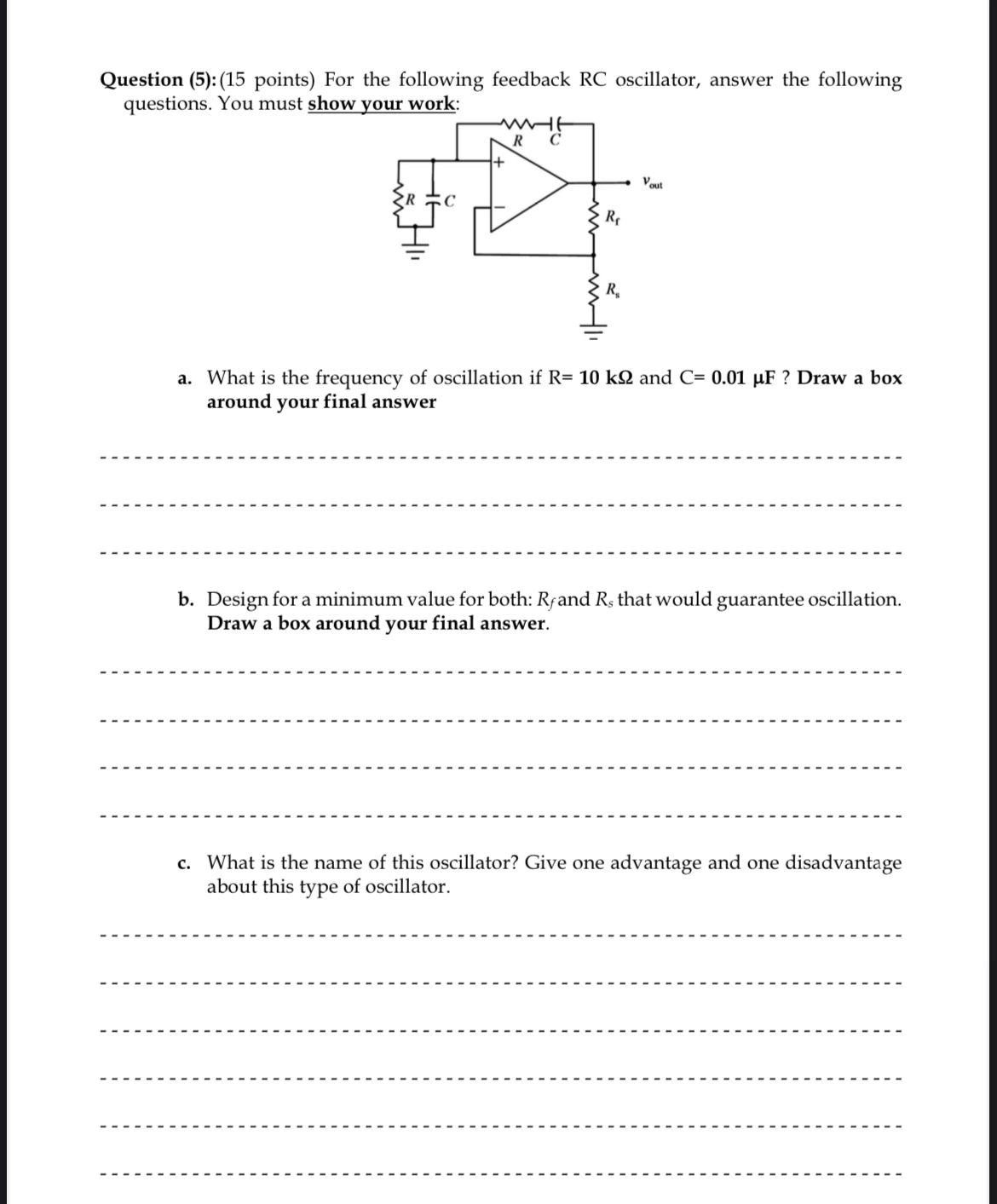

Question (5): (15 points) For the following feedback RC oscillator, answer the following questions. You must show vomr work
a. What is the frequency of oscillation if R=10k and C=0.01F? Draw a box around your final answer
.--
b. Design for a minimum value for both: Rf and Rs that would guarantee oscillation. Draw a box around your final answer.
c. What is the name of this oscillator? Give one advantage and one disadvantage about this type of oscillator.
Question ( 5 ) : ( 1 5 points ) For the following

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
