Question: ( 3 0 pts ) ( a ) find current i ( t ) for t > 0 in the circuit below: R 1 =

(30pts)

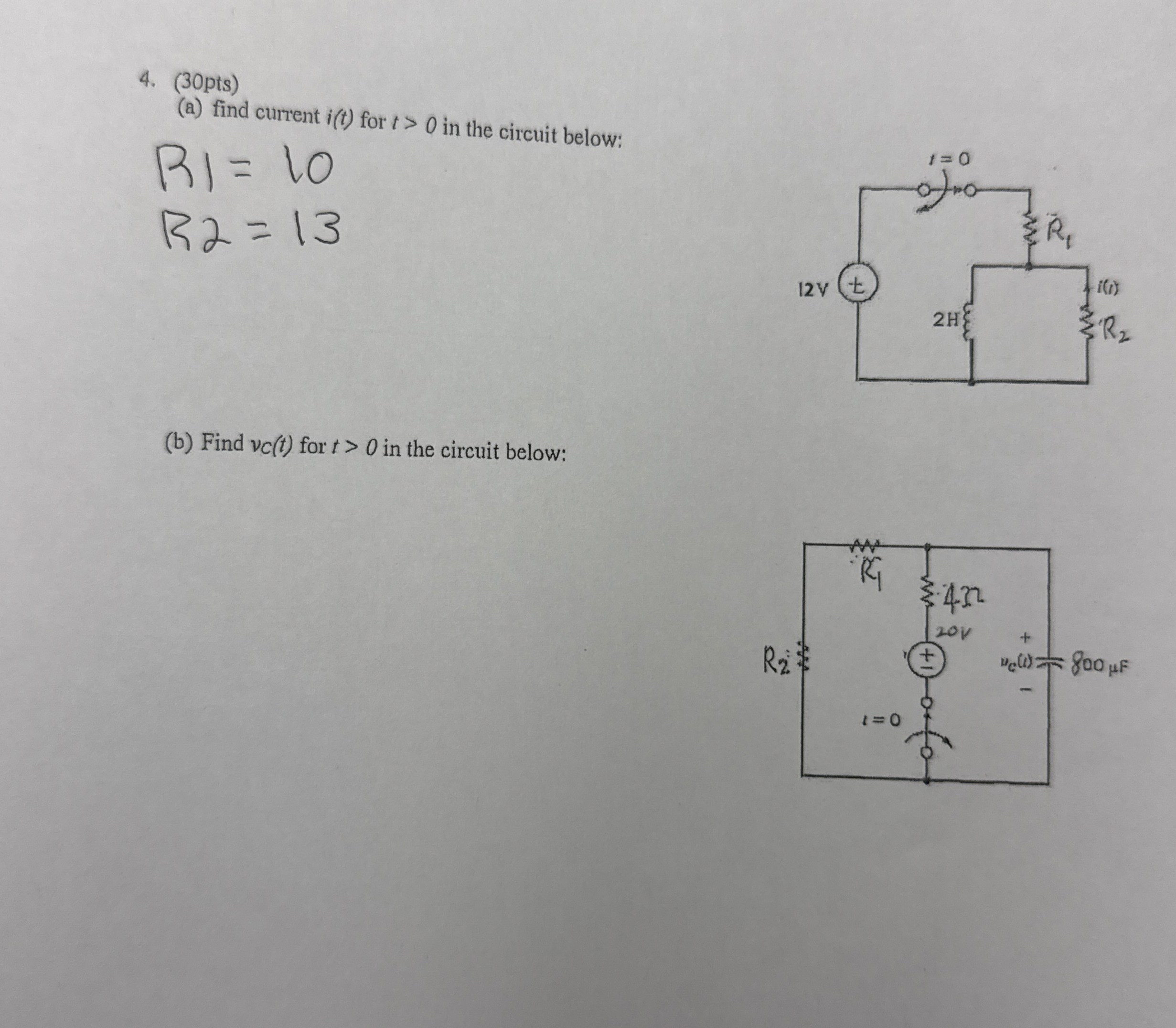

(a) find current i(t) for t>0 in the circuit below:
R1=10
R2=13
(b) Find vC(t) for t>0 in the circuit below:
( 3 0 pts ) ( a ) find current i ( t ) for t > 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
