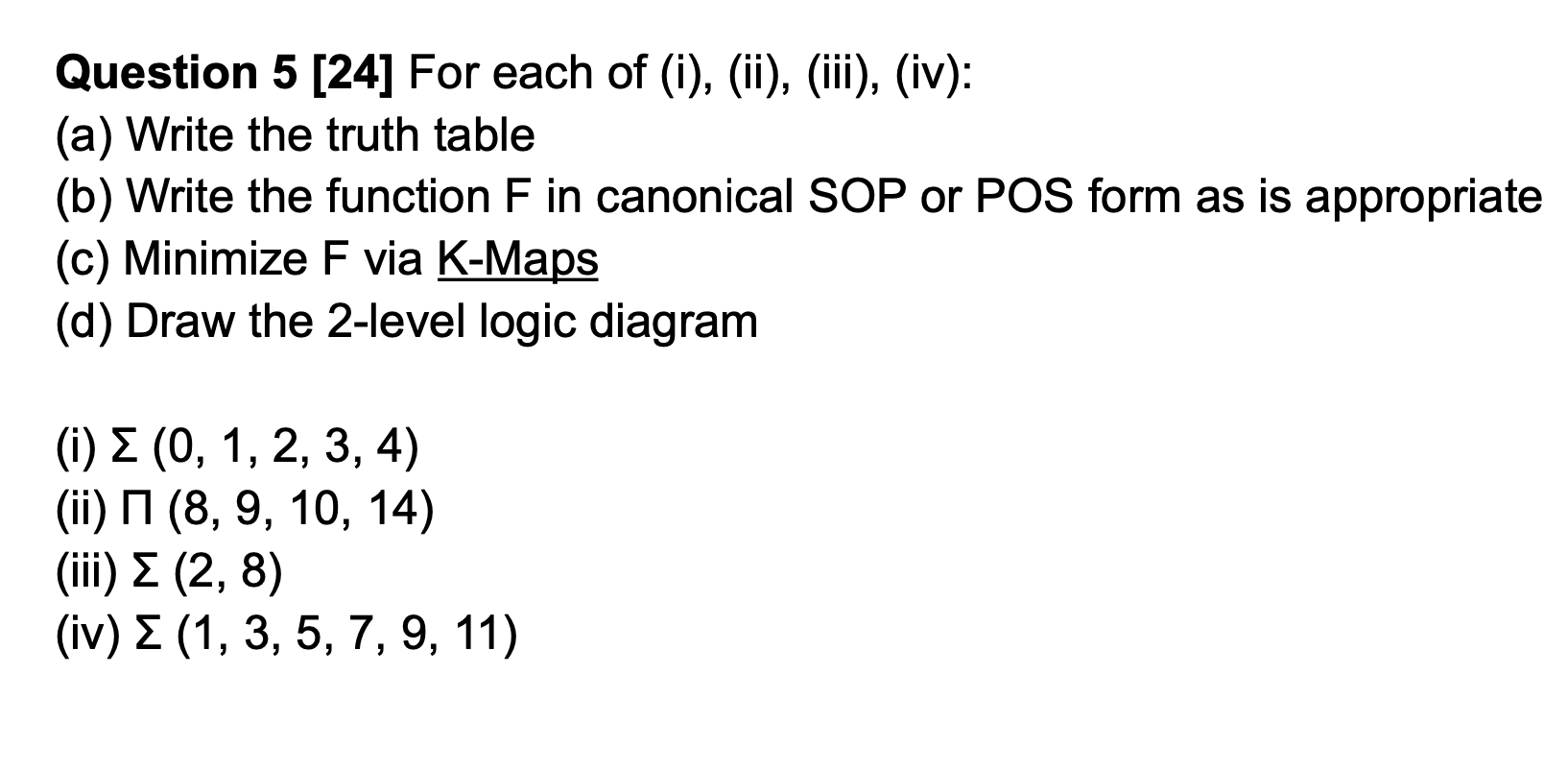

Question: Question 5 [ 2 4 ] For each of ( i ) , ( ii ) , ( iii ) , ( iv ) :

Question 5[24] For each of (i),(ii),(iii),(iv):
(a) Write the truth table
(b) Write the function F in canonical SOP or POS form as is appropriate
(c) Minimize F via K-Maps
(d) Draw the 2-level logic diagram
(i)(0,1,2,3,4)
(ii)(8,9,10,14)
(iii)(2,8)
(iv)(1,3,5,7,9,11)
