Question: Question 5 ) For the given in - plane stress state b = 1 2 0 MPa, c = 1 0 0 MPa and a

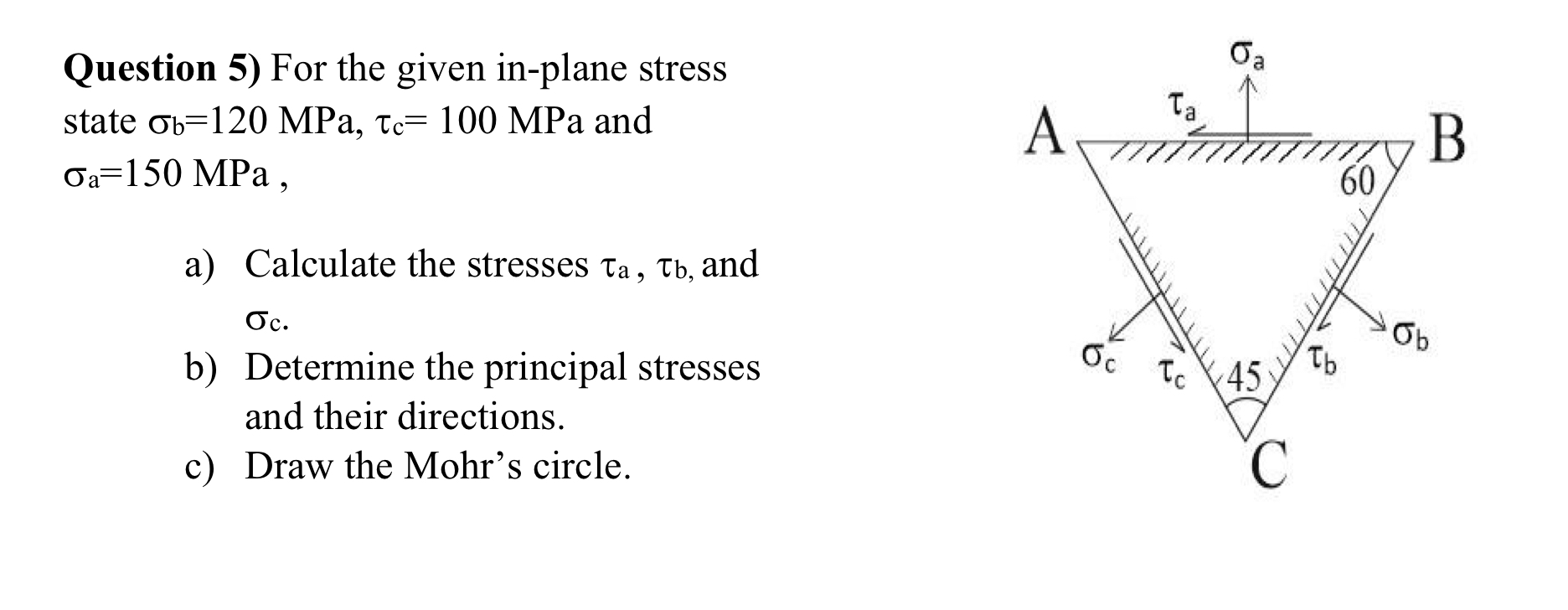

Question 5) For the given in-plane stress state b=120MPa,c=100MPa and a=150MPa,
a) Calculate the stresses a,b, and c.
b) Determine the principal stresses and their directions.
c) Draw the Mohr's circle.
Question 5 ) For the given in - plane stress

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
