Question: QUESTION 5 ) In the plane truss system, a ) check the system for statically indeterminate or determinate b ) calculate the rod forces numbered

QUESTION 5)
In the plane truss system,

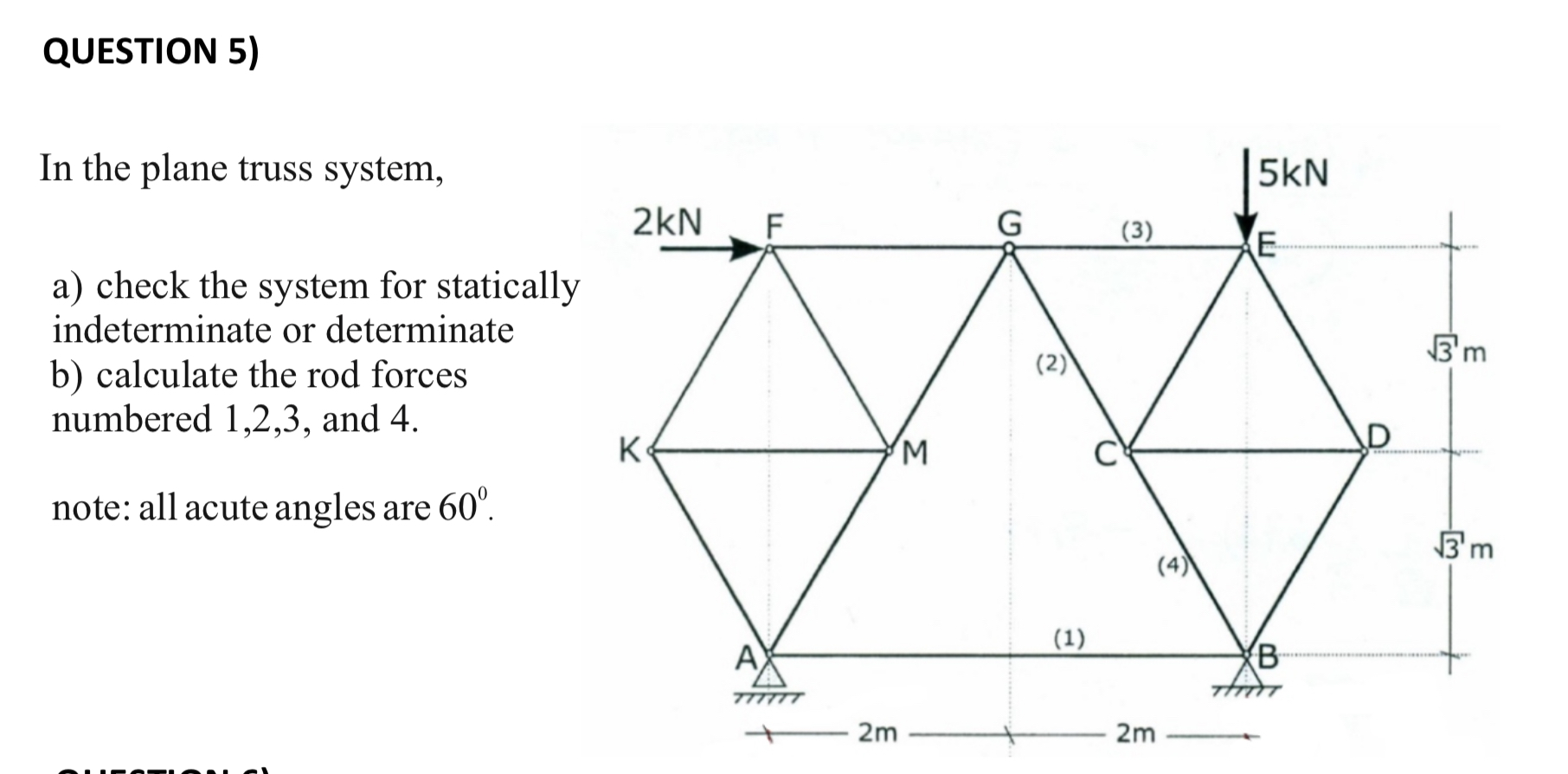

a) check the system for statically indeterminate or determinate b) calculate the rod forces numbered 1,2,3, and 4.
note: all acute angles are 60.
QUESTION 5 ) In the plane truss system, a ) check

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
