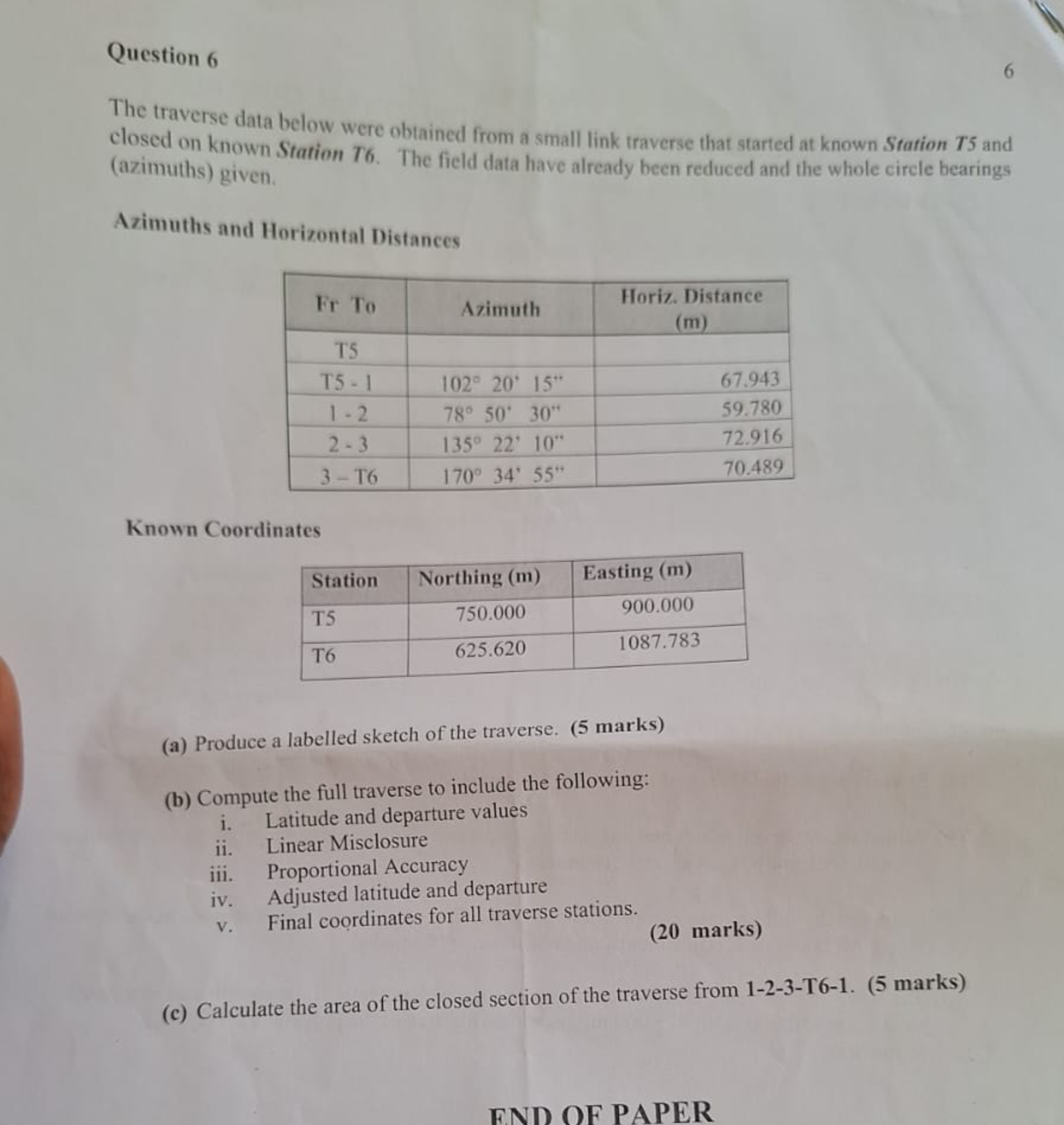

Question $6$

The traverse data below were obtained from a small link traverse that started at known Station T$5$ and

closed on known Station $T6.$ The field data have already been reduced and the whole circle bearings

$($azimuths$)$ given.

Azimuths and Horizontal Distances

Known Coordinates

$($a$)$ Produce a labelled sketch of the traverse. $(5$ marks$)$

$($b$)$ Compute the full traverse to include the following:

i$.$ Latitude and departure values

ii$.$ Linear Misclosure

iii. Proportional Accuracy

iv$.$ Adjusted latitude and departure

v$.$ Final coordinates for all traverse stations.

$(20$ marks$)$

$($c$)$ Calculate the area of the closed section of the traverse from $1-2-3-$T$6-1.(5$ marks$)$
