question c) clamp, handle, casting

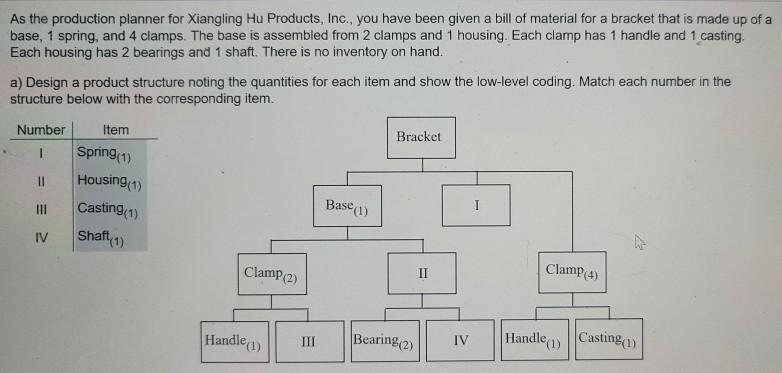

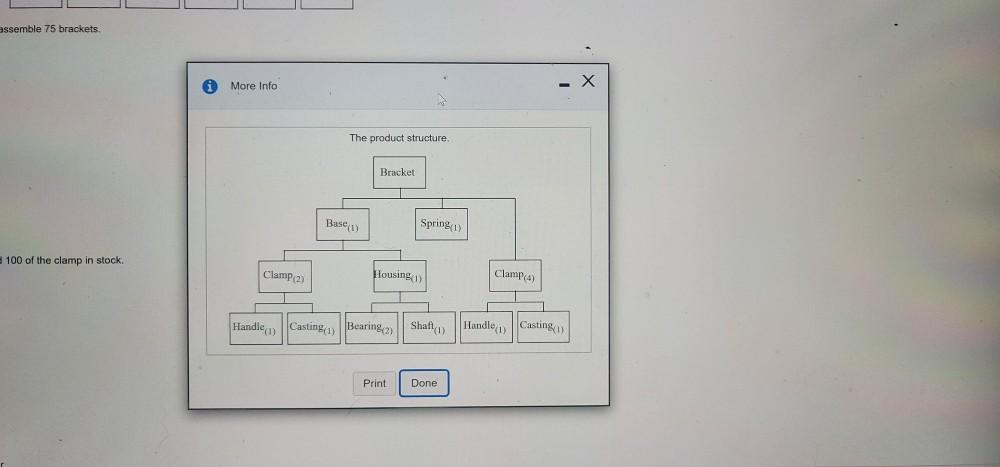

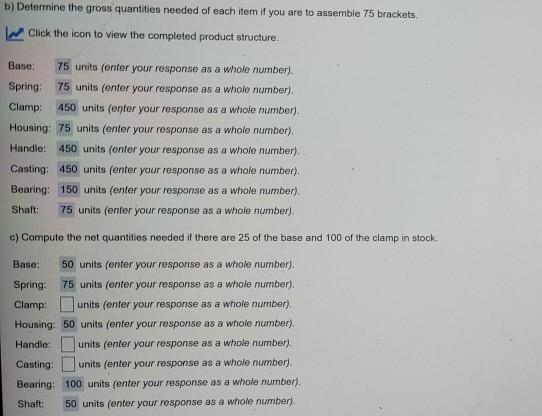

As the production planner for Xiangling Hu Products, Inc., you have been given a bill of material for a bracket that is made up of a base, 1 spring, and 4 clamps. The base is assembled from 2 clamps and 1 housing. Each clamp has 1 handle and 1 casting, Each housing has 2 bearings and 1 shaft. There is no inventory on hand. a) Design a product structure noting the quantities for each item and show the low-level coding. Match each number in the structure below with the corresponding item. Number Item Bracket 1 Spring(1) Housing (1) I III Casting (1) 10 Base (1) IV Shaft(1) Clamp (2) Clamp (4) Handle (1) III Bearing(2) IV Handle ) Casting (1) assemble 75 brackets More Info The product structure, Bracket Base ) Spring (1) 100 of the clamp in stock. Clamp (2) Housing Clamp Handle ) Casting (1) Bearing) Shafton Handle Casting Print Done b) Determine the gross quantities needed of each item if you are to assemble 75 brackets Click the icon to view the completed product structure. Base: 75 units (enter your response as a whole number). Spring 75 units (enter your response as a whole number), Clamp: 450 units (enter your response as a whole number). Housing: 75 units (enter your response as a whole number). Handle: 450 units (enter your response as a whole number). Casting: 450 units (enter your response as a whole number). Bearing: 150 units (enter your response as a whole number) Shaft: 75 units (enter your response as a whole number). c) Compute the net quantities needed if there are 25 of the base and 100 of the clamp in stock. Base: 50 units (enter your response as a whole number). Spring: 75 units (enter your response as a whole number): Clamp: units (enter your response as a whole number). Housing: 50 units (enter your response as a whole number). Handle: units (enter your response as a whole number). Casting: units (enter your response as a whole number) Bearing: 100 units (enter your response as a whole number). Shaft: 50 units (enter your response as a whole number)
