Question for Construction Planning and Scheduling

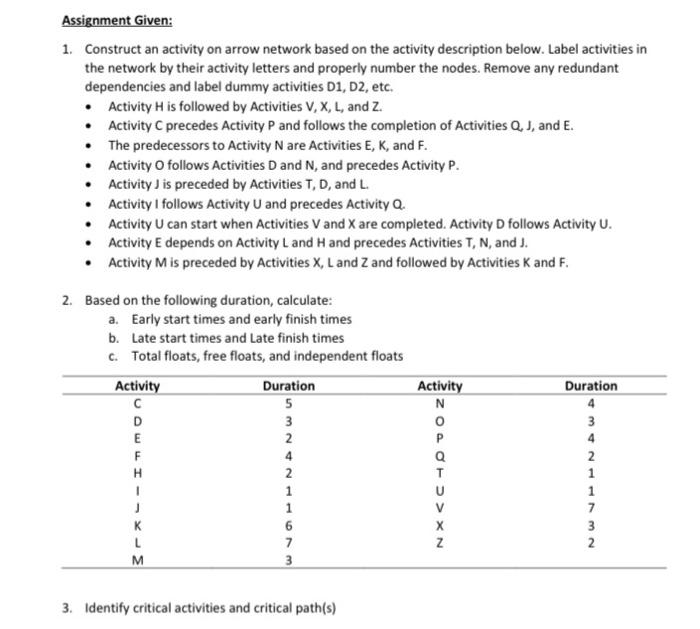

Assignment Given: 1. Construct an activity on arrow network based on the activity description below. Label activities in the network by their activity letters and properly number the nodes. Remove any redundant dependencies and label dummy activities D1, D2, etc. Activity H is followed by Activities V, X, L, and Z. Activity C precedes Activity P and follows the completion of Activities QJ, and E. The predecessors to Activity N are Activities E, K, and F. Activity O follows Activities D and N, and precedes Activity P. Activity) is preceded by Activities T, D, and L. Activity I follows Activity U and precedes Activity Q. Activity U can start when Activities V and X are completed. Activity D follows Activity U. Activity E depends on Activity Land H and precedes Activities T, N, and ). Activity M is preceded by Activities X, Land Z and followed by Activities K and F. Activity N Duration 2. Based on the following duration, calculate: a. Early start times and early finish times b. Late start times and Late finish times c. Total floats, free floats, and independent floats Activity Duration 5 D 3 E 2 F 4 H 2 1 1 1 6 L 7 M. 3 AN NX
