Question: Question: ( square ) 1 . Draw the thermal resistance loop of the panel and determine the thermal resistance ( conduction and

Question: \(\square \)

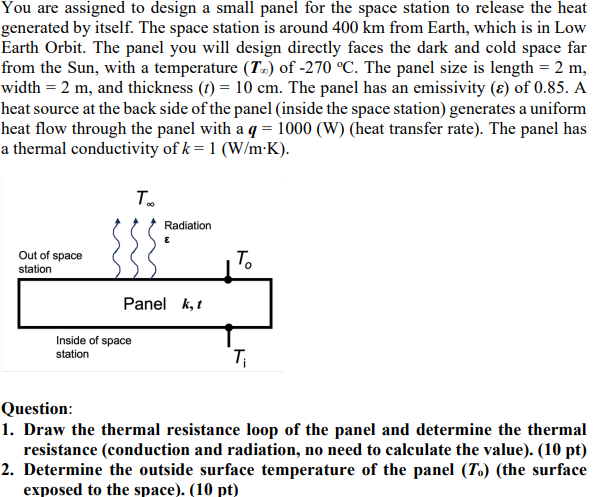

1. Draw the thermal resistance loop of the panel and determine the thermal resistance (conduction and radiation, no need to calculate the value).(10 pt )
2. Determine the outside surface temperature of the panel (\( T_{0}\))(the surface exposed to the space).(10 pt\()\)
Question: \ ( \ square \ ) 1 . Draw the thermal

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
