Question: Questions and Problems (1) Draw a network diagram for the project given below: (1) A is the first operation of the project. (2) B and

Questions and Problems (1) Draw a network diagram

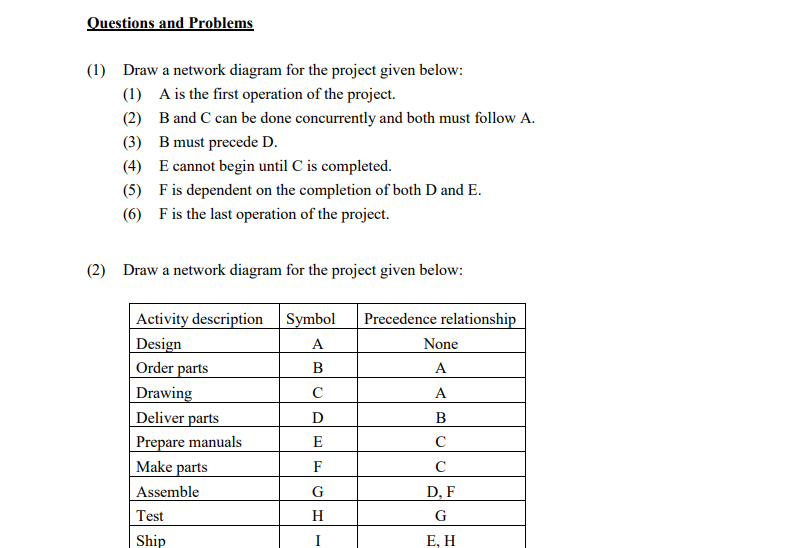

Questions and Problems (1) Draw a network diagram for the project given below: (1) A is the first operation of the project. (2) B and C can be done concurrently and both must follow A. (3) B must precede D. (4) E cannot begin until C is completed. (5) Fis dependent on the completion of both D and E. (6) F is the last operation of the project. (2) Draw a network diagram for the project given below: Precedence relationship None A A B Activity description Symbol Design A Order parts B Drawing Deliver parts D Prepare manuals E Make parts F Assemble G Test H Ship I D, F G E, H

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
