Questions:

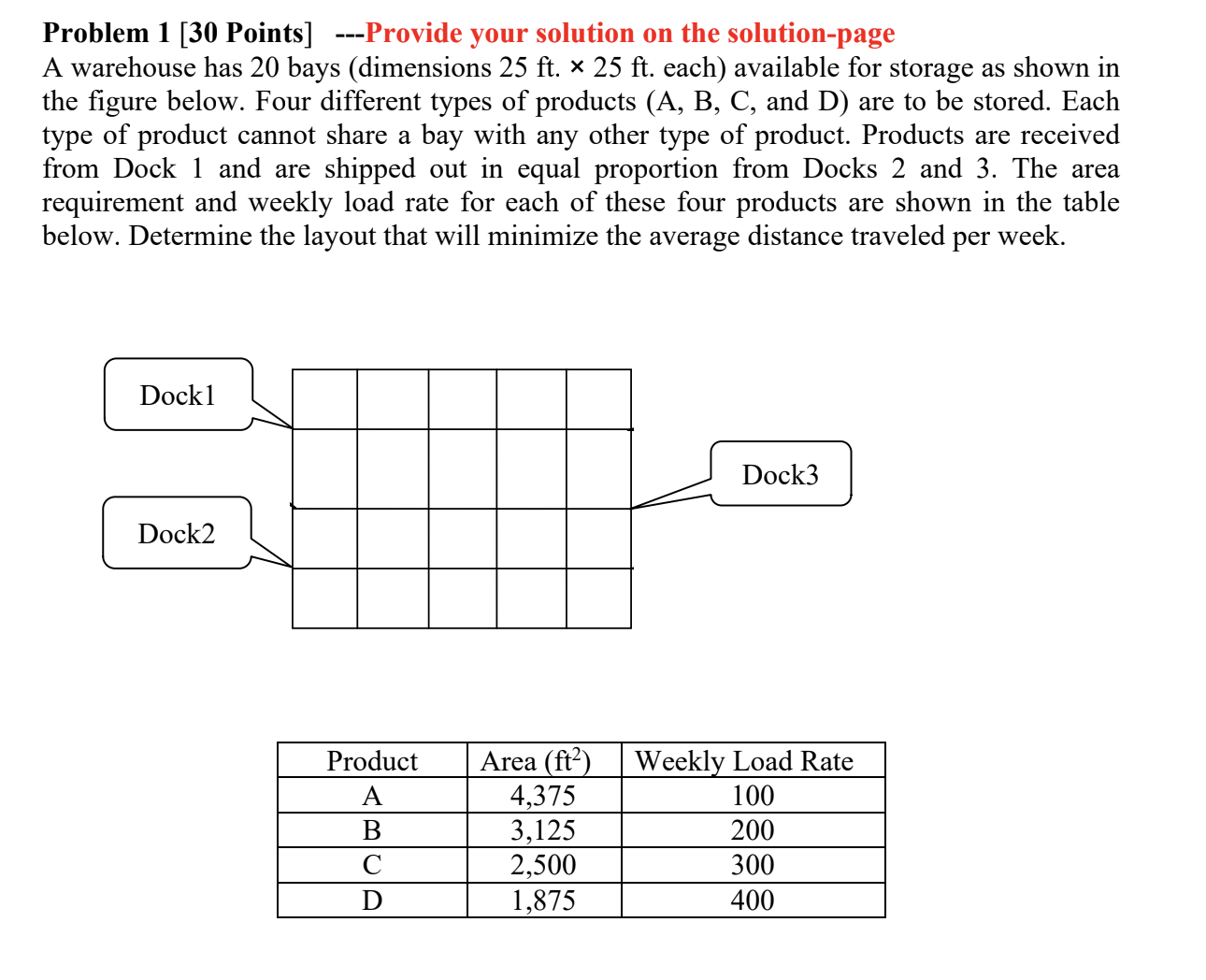

Problem 1 [30 Points] ---Provide your solution on the solution-page A warehouse has 20 bays (dimensions 25ft.25ft. each) available for storage as shown in the figure below. Four different types of products (A,B,C, and D) are to be stored. Each type of product cannot share a bay with any other type of product. Products are received from Dock 1 and are shipped out in equal proportion from Docks 2 and 3 . The area requirement and weekly load rate for each of these four products are shown in the table below. Determine the layout that will minimize the average distance traveled per week. Problem 1 Solution: [S points]: Product ranking [ 2 point ] : Enter your expected distances in the following layout [ 20 points ] (one point for each grid): Optimal layout [ 3 points ](0.15 point for each grid )
