Question: QUESTUN 2 A rectangular gate AB is hinged along B and held by horizontal force FA applied at A. The liquid to the left of

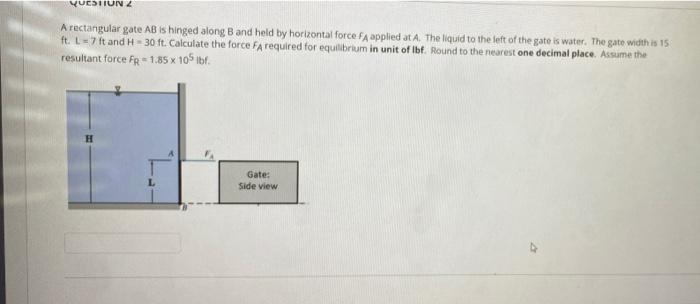

QUESTUN 2 A rectangular gate AB is hinged along B and held by horizontal force FA applied at A. The liquid to the left of the gate is water. The gate width is 15 ft. L=7ft and H = 30 ft. Calculate the force FA required for equilibrium in unit of tbl. Round to the nearest one decimal place. Assume the resultant force FR - 1.85 x 105 if Gate: Side view

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
